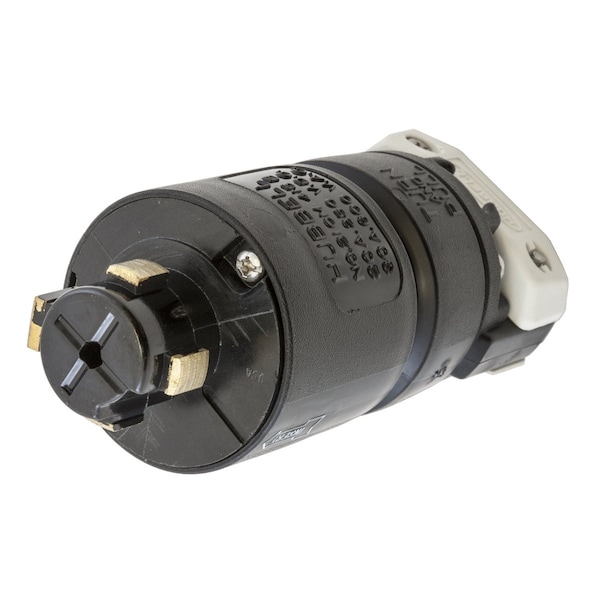

Locking Devices, Hubbellock, Industrial, Male Plug, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
| Item - Plugs and Receptacles | Chem/Marine Plug |
|---|---|
| Length | 2.33 in |
| Number of Poles | 3-Pole, 4-Wire Grounding |
| Wire Size | #10 AWG to #6 AWG |
| Material | Nylon |
| IP Rating | IP30 |
| Color | Yellow |
| Cord Size | 0.63 to 1.2 in, 0.7 to 1.2 in |
| Standards | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green), UL/CSA |
| Blade Material | Brass |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.9 |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Industry Standard(s) | Certified to CSA Standard Listed to UL Standard |
| Item Type | 20A / 30A Hubbellock® Plug |
| Height | 5.63 in |
| Cable Range | 0.7 to 1.2 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage Withstand - 2,000V minimum Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Voltage Rating Description | 250 VDC/600 VAC |
| Dielectric Strength | Withstands 2,000V minimum |
| Type | Plugs |
| Dimensions | 2.33 in x 0.94 in x 5.63 in |
| Current / Amperage Rating | 20/30 A |
| Number Of Wires | 4-Wire |
| Width | 0.94 in |
| Amperage Rating | 20/30 A |
| Cord Range | 0.700"-1.200" |
| Package Quantity | 1 |
