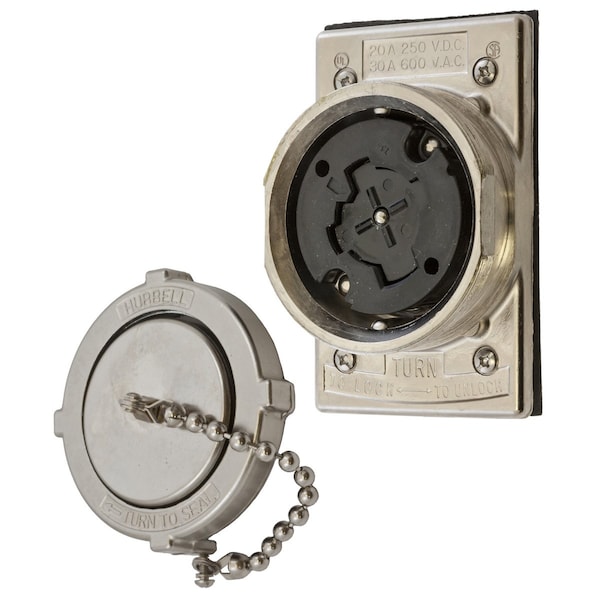

Locking Devices, Hubbellock, Industrial, Receptacle, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, FS/FD Box Mounting
| Item | Single Receptacle |
|---|---|
| Type | Receptacle |
| Amps - Plugs and Receptacles | 30/20 A |
| Voltage | 600V AC/250V DC |
| Color - Plugs and Receptacles | Metallic |
| Number of Poles | 3 |
| Length | 4-1/2 in |
| Material | Brass Plated, Nickel |
| Number of Wires | 4 |
| Width | 3-1/2 in |
| Standards | UL/CSA, UL 498 |
| Application | Heavy Duty Industrial |
| Height | 3.62 in |
| Wire Size | 10 AWG |
| IP Rating | IP44 |
| Operating Temp. Range | -40 to 75° C |
| Item Type | 20A / 30A Grounding Hubbellock® Receptacle |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 20/30 A |
| Current Rating | 20 A |
| Environmental Conditions | Weather Resistant |
| Dimensions | 4.5 in x 3.5 in x 3.62 in |
| Voltage Rating Description | 250 VDC/600 VAC |
| Amperage Rating | 20/30 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #10 AWG - #6 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Industry Standard(s) | Certified to CSA Standard Listed to UL Standard |
| Package Quantity | 1 |
