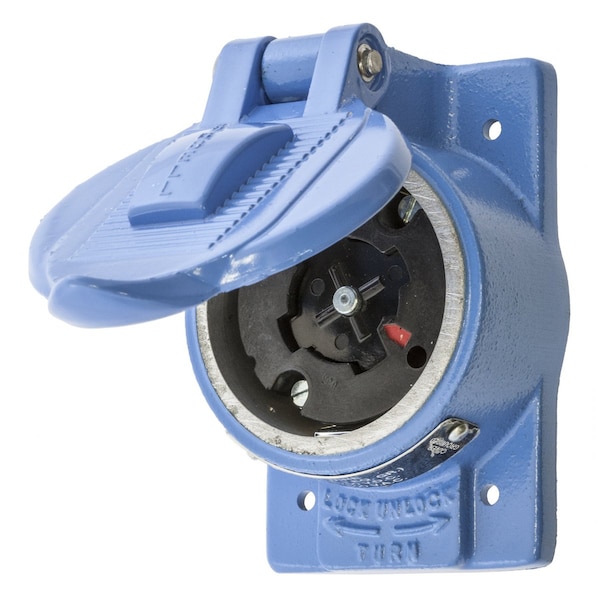

Locking Devices, Hubbellock, Industrial, Receptacle, 30A 600V AC, 20A 250V DC, 4-Pole 5-Wire Grounding, Non NEMA, Screw Terminal, With FS/FD Cover.
| Item | Single Receptacle |
|---|---|
| Voltage | 600V AC, 250V DC |
| Color | Blue |
| Number of Poles | 3-Pole |
| Material | zinc plated Steel |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| IP Rating | IP30 Suitability |
| Special Features | Molded In or Stamped On |
| Application | Heavy Duty Industrial |
| Flammability | UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors |
| Wire Size | #12 AWG; 30A #10 AWG |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Spring Material | Bronze |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Weight (Lbs.) | 1.3 |
| Lock Type | Hubbellock |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Base Material | Cast Aluminum |
| Width | 3.28 in |
| Height | 3.67 in |
| Length | 4.56 in |
| Current Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Type | Receptacle |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 4.56 in x 3.28 in x 3.67 in |
| Material - Mounting Hardware | Screw Mounting |
| Number Of Wires | 5-Wire |
| Dielectric Strength | Withstands 2,000V minimum |
| Connectivity | Back Wired Screw Terminals |
| Item Type | 30A, 20A Grounding Hubbellock® Receptacle |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 250 VDC/600 VAC |
| Current / Amperage Rating | 20/30 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 20/30 A |
| Package Quantity | 1 |
