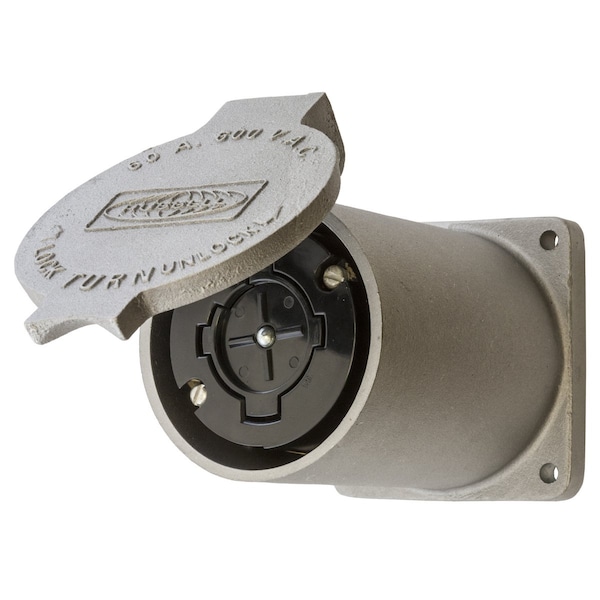

Dispositivos de bloqueo, Hubbellock, Industrial, Receptáculo, 60A 600V CA, 3 Polos 4 Hilos a Tierra, No NEMA, Terminal de Tornillo, Aluminio Fundido, Carcasa Larga.
| Item | Single Receptacle |
|---|---|
| Voltage | 600V AC |
| Color | Metallic |
| Number of Wires | 4-Wire Grounding |
| Phase | Multi Phase |
| IP Rating | IP44 Suitability |
| Special Features | Molded In or Stamped On |
| Material | Steel,Nickel plate |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| Application | Heavy Duty Industrial |
| Base Material | Cast Aluminum |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Weight (Lbs.) | 2.55 |
| Wire Size | #6AWG |
| Spring Material | Bronze |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Lock Type | Hubbellock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Material - Mounting Hardware | Screw Mounting |
| Width | 4.32 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Moisture Resistance - IP44 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #8 AWG - #4 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Dielectric Strength | Withstands 2,000V minimum |
| Type | Receptacle |
| Amperage Rating | 60 A |
| Voltage Rating Description | 600 V |
| Industry Standard(s) | Certified to CSA Standard Listed to UL Standard |
| Current / Amperage Rating | 60 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Item Type | Grounding Receptacle, 60A Hubbellock® Receptacle |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current Rating | 60 A |
| Length | 3-1/2 in |
| Dimensions | 3-1/2 in x 4.32 in x 4.96 in |
| Height | 4.96 in |
| Connectivity | Screw Terminals |
| Number Of Poles | 3-Pole |
| Package Quantity | 1 |
