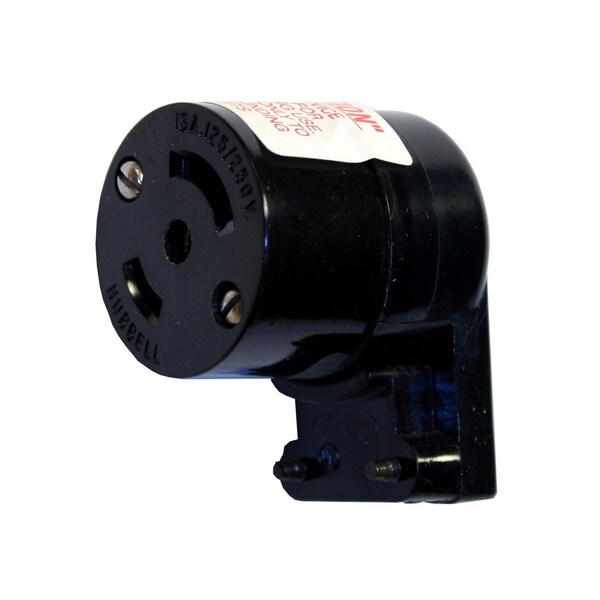

Dispositivos de bloqueo, Twist-Lock® de tamaño pequeño, industrial, conector hembra, 15A 125/250V CA, de 3 polos y 3 cables sin conexión a tierra, NEMA ML-3R, terminal de tornillo, angulado.
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 15 |
| Voltage | 125/250V AC |
| Number of Poles | 3 |
| NEMA Configuration | ML-3R |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Material | .032" Bronze |
| Body Material | Black Thermoset |
| Special Features | Terminals identified in accordance with UL 498 |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; UL |
| IP Rating | IP20 Suitability |
| Application | Heavy Duty Industrial |
| Cord Dia. Range | .335"-.421" |
| Dielectric Strength | Withstands 2,000V minimum |
| Weight | 0.1 |
| Type | Connector Body |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flame Resistant | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Display Size | Midget Locking |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Connectivity | Pressure Terminal Screws |
| Cord Range | 0.335"-0.421" |
| Item Type | 15A Connector |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Amperage Rating | 15 A |
| Dimensions | 1.68 in x 1.17 in x 1.28 in |
| Length | 1.68 in |
| Insulation | Insulated Body |
| Voltage Rating Description | 125/250 V |
| Nema Rating | ML-3R |
| Current / Amperage Rating | 15 A |
| Cable Range | 0.335 to 0.421 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Conductor Range | #14 AWG to #12 AWG |
| Height | 1.28 in |
| Width | 1.17 in |
| Material - Mounting Hardware | Cord Mounted |
| Number Of Wires | 3-Wire |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current Rating | 15 A |
| Wire Size | #18 AWG to #14 AWG |
| Package Quantity | 1 |
