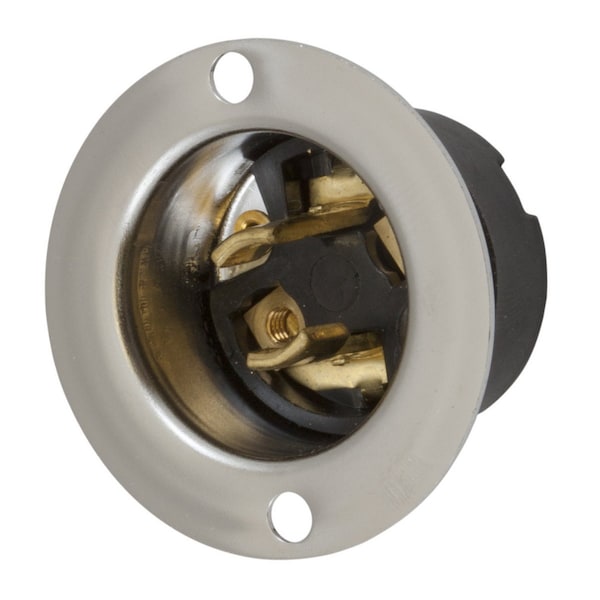

Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125V AC, 2-Pole 2-Wire Non Grounding, NEMA ML-1P, Stainless Steel Flange
| Item | Flanged Inlet |
|---|---|
| NEMA Configuration | ML-1P |
| Voltage | 125V AC |
| Amps | 15 |
| Color | Black |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| Flange Material | Stainless Steel |
| Material | zinc plated |
| IP Rating | IP20 Suitability |
| Special Features | Molded In or Stamped On |
| Standards | Certified for current interrupting at full rated current |
| Application | Heavy Duty Industrial |
| Wire Size | 15A #14 AWG |
| Weight (Lbs.) | 0.05 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Lock Type | Twist-lock |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Number Of Wires | 2-Wire |
| Nema Rating | ML-1P |
| Length | 1.63 in |
| Dimensions | 1.63 in x 1.63 in x 0.94 in |
| Insulation | Insulated Body |
| Current / Amperage Rating | 15 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Type | Flanged Inlet |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Height | 0.94 in |
| Current Rating | 15 A |
| Width | 1.63 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Material - Mounting Hardware | Screw Mounting |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | 15A Midget Twist-Lock® Flanged Inlet |
| Voltage Rating Description | 125 V |
| Dielectric Strength | Withstands 2,000V minimum |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Connectivity | Screw Terminals |
| Display Size | Midget Locking |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Amperage Rating | 15 A |
| Package Quantity | 1 |
