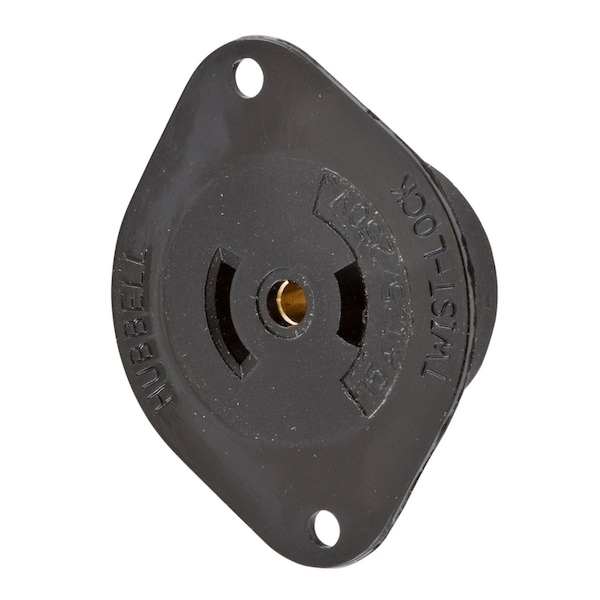

Dispositivos de bloqueo, Midget Twist-Lock®, Industrial, Receptáculo con brida, 15A 125/250V CA, 3 polos 3 cables sin conexión a tierra, brida de nailon NEMA ML-3R.
| Item | Flanged Receptacle |
|---|---|
| NEMA Configuration | ML-3R |
| Voltage | 125/250V AC |
| Amps | 15 |
| Color | Black |
| Number of Poles | 3-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| Standards | Certified for current interrupting at full rated current; UL |
| IP Rating | IP20 Suitability |
| Flange Material | Black Nylon |
| Material | Nickel-plated Brass Round head screws |
| Special Features | Molded In or Stamped On |
| Application | Heavy Duty Industrial |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Weight (Lbs.) | 0.05 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | 15A #14 AWG |
| Lock Type | Twist-lock |
| Spring Material | Bronze |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Width | 1-3/4 in |
| Height | 0.92 in |
| Length | 2.06 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dielectric Strength | Withstands 2,000V minimum |
| Type | Flanged Receptacle |
| Number Of Wires | 3-Wire |
| Connectivity | Screw Terminals |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Item Type | ® Receptacle |
| Voltage Rating Description | 125/250 V |
| Display Size | Midget Locking Devices |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 15 A |
| Amperage Rating | 15 A |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Current Rating | 15 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | ML-3R |
| Dimensions | 2.06 in x 1-3/4 in x 0.92 in |
| Package Quantity | 1 |
