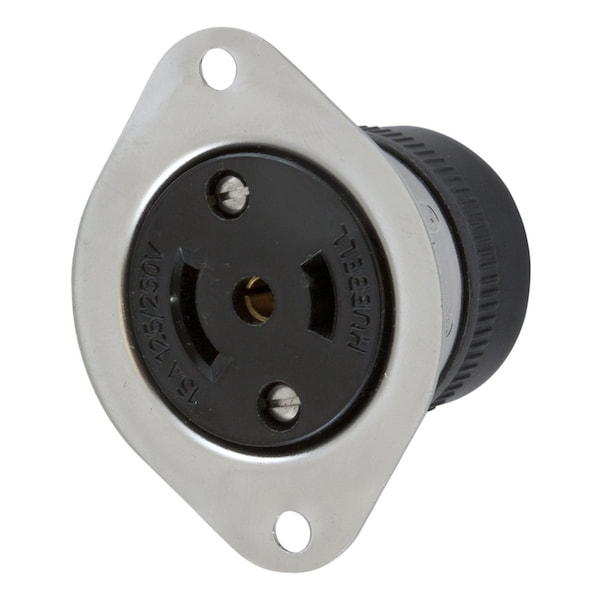

Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3R, Stainless Steel Flange.
| Item | Flanged Receptacle |
|---|---|
| NEMA Configuration | ML-3R |
| Voltage | 125/250V AC |
| Amps | 15 |
| Color | Black, Stainless |
| Number of Poles | 3-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| Flange Material | Stainless Steel |
| Standards | Certified for current interrupting at full rated current; UL |
| Special Features | Molded In or Stamped On |
| IP Rating | IP20 Suitability |
| Material | Nickel-plated Brass Round head screws |
| Application | Heavy Duty Industrial |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Lock Type | Twist-lock |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Wire Size | #18 AWG - #14 AWG solid or stranded copper wire only. |
| Weight (Lbs.) | 0.1 |
| Spring Material | Bronze |
| Height | 1-1/4 in |
| Width | 1.62 in |
| Length | 2.06 in |
| Type | Flanged Receptacle |
| Material - Mounting Hardware | Screw Mounting |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Midget Locking Devices |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Wires | 3-Wire |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Nema Rating | ML-3R |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 2.06 in x 1.62 in x 1-1/4 in |
| Item Type | Flanged Receptacle |
| Cable Range | 0.500 (12.7) in |
| Connectivity | Screw Terminals |
| Current Rating | 15 A |
| Voltage Rating Description | 125/250 V |
| Package Quantity | 1 |
