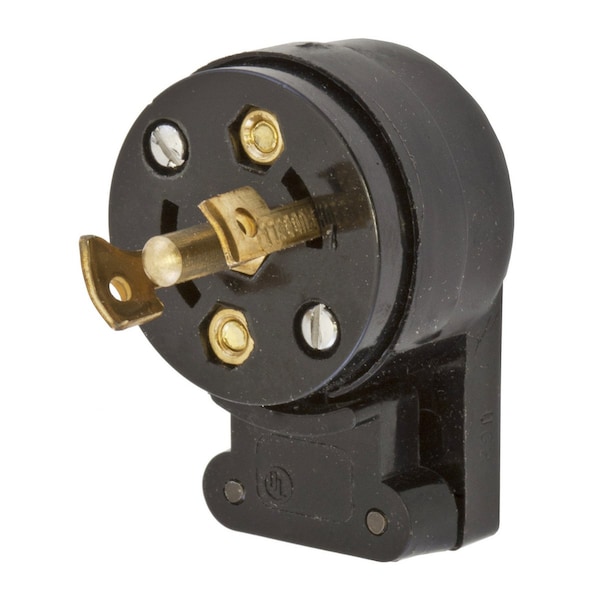

Dispositivos de bloqueo, Midget Twist-Lock®, Industrial, Clavija macho, 15A 125/250V CA, 3 polos 3 cables sin conexión a tierra, NEMA ML-3P, Terminal de tornillo, Negro, Angulado.
| Item - Plugs and Receptacles | Standard Plug |
|---|---|
| Length | 1.68 in |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 125/250V AC |
| Number of Poles | 3-Pole, 3-Wire Non-Grounding |
| Phase | Single Phase |
| Application | Industrial, Commercial |
| Standards | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Cord Size | .335"-.421" |
| Color | Black |
| Material | Nylon |
| IP Rating | IP20 Suitability |
| NEMA Configuration | ML-3P |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.05 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Wire Size | #18 AWG to #14 AWG |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Blade Material | Brass |
| Number Of Wires | 3-Wire |
| Height | 1.32 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Width | 1.17 in |
| Voltage Rating Description | 125/250 V |
| Connectivity | Pressure Terminal Screws |
| Amperage Rating | 15 A |
| Display Size | Midget Locking |
| Cord Range | 0.335"-0.421" |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | ML-3P |
| Current Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Item Type | Plug |
| Material - Mounting Hardware | Cord Mounted |
| Cable Range | 0.335 to 0.421 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Type | Plugs |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Type | All Listed Portables |
| Dimensions | 1.68 in x 1.17 in x 1.32 in |
| Package Quantity | 1 |
