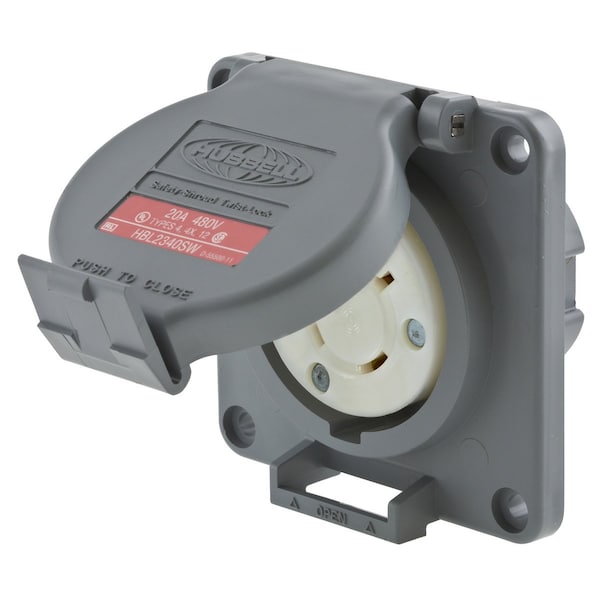

Locking Devices, Twist-Lock®, 20A 480V AC, NEMA L8-20R, Watertight Safety-Shroud® Valox® housing and flange.
| Phase | Single Phase |
|---|---|
| Cord Size | 16 to 8 AWG |
| NEMA Configuration | L8-20R |
| Material | Thermoplastic |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Amps | 20 |
| Color | Gray |
| Voltage | 480 VAC |
| Standards | UL Listed, CSA Certified |
| Item | Safety-Shroud Receptacle |
| Product Type | Receptacle |
| Dielectric Strength | 2,000 V |
| Operating Temp. | -40 to 75°C |
| Application | Heavy Duty Industrial Shrouded Watertight |
| Length | 3-3/4 in |
| Height | 2.6 in |
| Width | 3-3/4 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | L8-20R |
| Amperage Rating | 20 A |
| Wire Size | #16 AWG to #8 AWG |
| Current Rating | 20 A |
| Display Size | Standard Sized Product |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | Receptacle |
| Environmental Conditions | Watertight |
| Industry Standard(s) | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Voltage Rating | 480 VAC |
| Connectivity | Screw Terminals |
| Dimensions | 3-3/4 in x 3-3/4 in x 2.6 in |
| Current / Amperage Rating | 20 A |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
