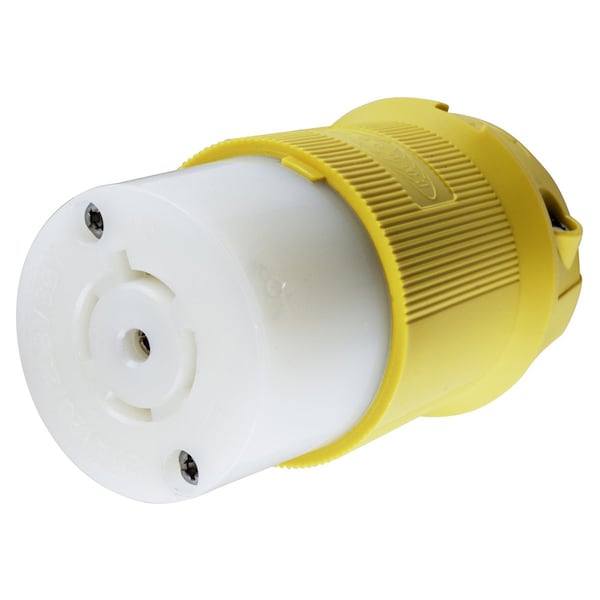

Locking Devices, Twist-Lock®, Corrosion Resistant Insulgrip® Connector, 20A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-20R Nylon
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 20 |
| Voltage | 120/208V AC |
| Number of Poles | 4-Pole |
| NEMA Configuration | L21-20R |
| Wiring Style | Chem, Marine |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| IP Rating | IP20 |
| Phase | 3 Phase WYE |
| Body Material | Natural White Nylon |
| Material | .031" (.8) Brass |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Application | Heavy Duty Industrial/Marine |
| Weight | 0.4 |
| Dielectric Strength | 2,000V minimum |
| Cord Dia. Range | .35"-1.15" |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Environmental Conditions | Corrosion Resistant |
| Length | 3.86 in |
| Connectivity | Screw Terminals |
| Material - Mounting Hardware | Cord Mounted |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Insulation | Insulated Body |
| Height | 2.33 in |
| Wire Size | #16 AWG to #8 AWG |
| Voltage Rating Description | 120/208 VAC |
| Cord Range | 0.350"-1.150" |
| Listings | UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Current Rating | 20 A |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Number Of Wires | 5-Wire Grounding |
| Current / Amperage Rating | 20 A |
| Display Size | Standard |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Width | 2.33 in |
| Nema Rating | L21-20R |
| Dimensions | 3.86 in x 2.33 in x 2.33 in |
| Amperage Rating | 20 A |
| Item Type | 20A Corrosion Resistant Insulgrip® Connector |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Package Quantity | 1 |
