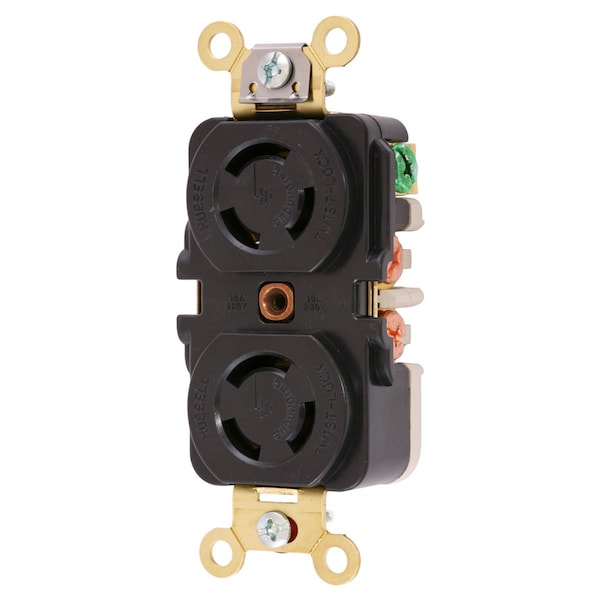

Locking Devices, Twist-Lock®, Industrial, Duplex Receptacle, 10A 250V/15A 125V, 3-Pole 3-Wire Non Grounding, Non- NEMA, Screw Terminal, Black
| Item | Single Receptacle |
|---|---|
| Voltage | 250V AC,125V |
| Color | Black |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| Material | Steel-zinc-plated |
| IP Rating | IP20 Suitability |
| Special Features | Molded In or Stamped On |
| Application | Heavy Duty Industrial |
| Base Material | Black Polyester |
| Wire Size | 15A #14 AWG |
| Weight (Lbs.) | 0.3 |
| Lock Type | Replacement-use |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Spring Material | .031" Brass |
| Type | Receptacle |
| Amperage Rating | 10/15 A |
| Current Rating | 10 A |
| Width | 1.7 in |
| Display Size | Standard Sized Product |
| Connectivity | Back and Side Wired Screw Terminals |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 250/125 V |
| Item Type | Flush Receptacle |
| Material - Mounting Hardware | Screw Mounting |
| Number Of Wires | 3-Wire |
| Current / Amperage Rating | 10/15 A |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed. Spec. W-C-596 Listed to UL 498 |
| Height | 1.17 in |
| Length | 3.29 in |
| Performance | Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG -#10 AWG solid or stranded copper wire only. Mechanical - Terminal Accommodation - #18-#10 AWG solid or stranded copper wire. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dimensions | 3.29 in x 1.7 in x 1.17 in |
| Package Quantity | 1 |
