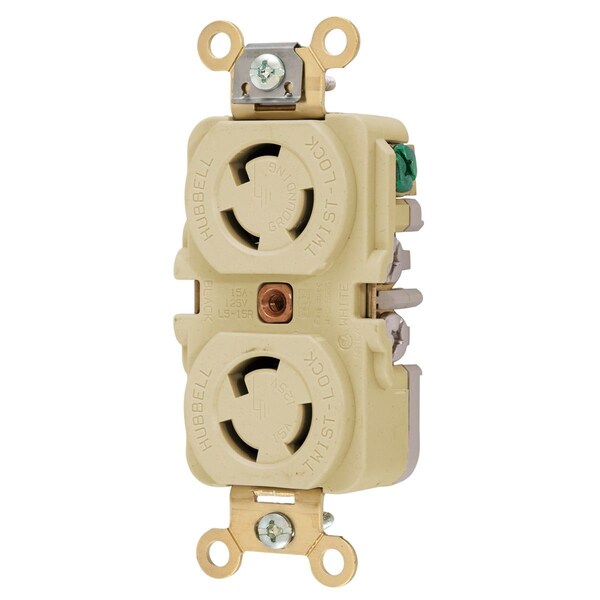

Dispositivos de bloqueo, Twist-Lock®, Industrial, Receptáculo Dúplex, 15A 125V, 2 Polos 3 Cables a Tierra, L5-15R, Terminal de Tornillo, Marfil.
| Item | Duplex Receptacle |
|---|---|
| NEMA Configuration | L5-15R |
| Voltage | 125V AC |
| Amps | 15 |
| Color | Ivory |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| Special Features | Molded In or Stamped On |
| Material | Steel-zinc-plated |
| HP | 0.5 |
| Application | Heavy Duty Industrial |
| Base Material | RTP |
| Lock Type | Twist-lock |
| Weight (Lbs.) | 0.3 |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Wire Size | #18 AWG - #10 AWG solid or stranded copper wire only. |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Spring Material | .031" Brass |
| Height | 1.17 in |
| Voltage Rating Description | 125 V |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Width | 1.7 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Number Of Wires | 3-Wire |
| Item Type | Flush Receptacle |
| Connectivity | Back and Side Wired |
| Dimensions | 3.29 in x 1.7 in x 1.17 in |
| Current / Amperage Rating | 15 A |
| Type | Receptacle |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 15 A |
| Nema Rating | L5-15R |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Screw Mounting |
| Horsepower - Maximum | 0.5 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed. Spec. W-C-596 Listed to UL 498 |
| Length | 3.29 in |
| Amperage Rating | 15 A |
| Package Quantity | 1 |
