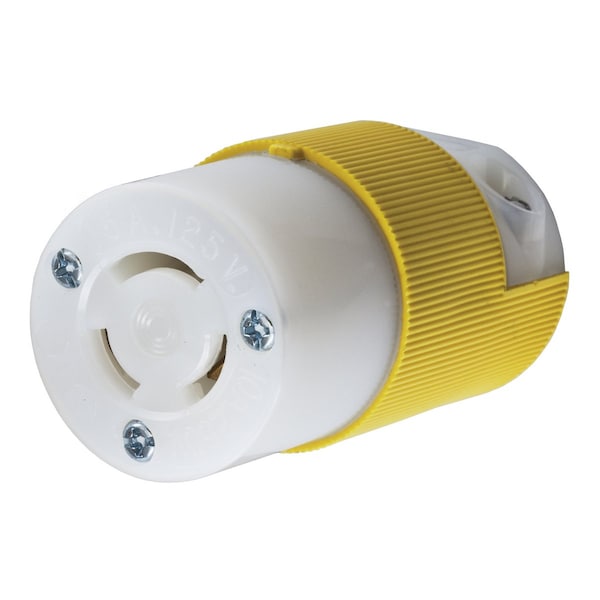

Dispositivos de bloqueo Twist-Lock® industriales, cuerpo de conector hembra, 10A 250V / 15A 125V, 3 polos 3 cables sin conexión a tierra, no NEMA, terminal de tornillo, amarillo.
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 10, 15 |
| Number of Poles | 3-Pole |
| Wiring Style | Insulgrip |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| IP Rating | IP20 |
| Material | .031" (.8) Brass |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Body Material | Natural White Nylon |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current |
| Application | Heavy Duty Industrial |
| Weight | 0.2 |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Dielectric Strength | 2,000V minimum |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Cord Dia. Range | .230"-.720" |
| Amperage Rating | 10A |
| Display Size | Standard |
| Voltage Rating Description | 250/125 V |
| Dimensions | 1.53 in x 1.53 in x 2.78 in |
| Listings | UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Material - Mounting Hardware | Cord Mounted |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Nema Rating | Non-NEMA |
| Width | 1.53 in |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Wire Size | #18 AWG to #10 AWG |
| Insulation | Insulated Body |
| Number Of Wires | 3-Wire Non-Grounding |
| Connectivity | Pressure Terminal Screws |
| Item Type | 10A / 15A Insulgrip® Connector |
| Height | 2.78 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Current Rating | 10A |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Current / Amperage Rating | 10 A |
| Length | 1.53 in |
| Cord Range | 0.230"-0.720" |
| Package Quantity | 1 |
