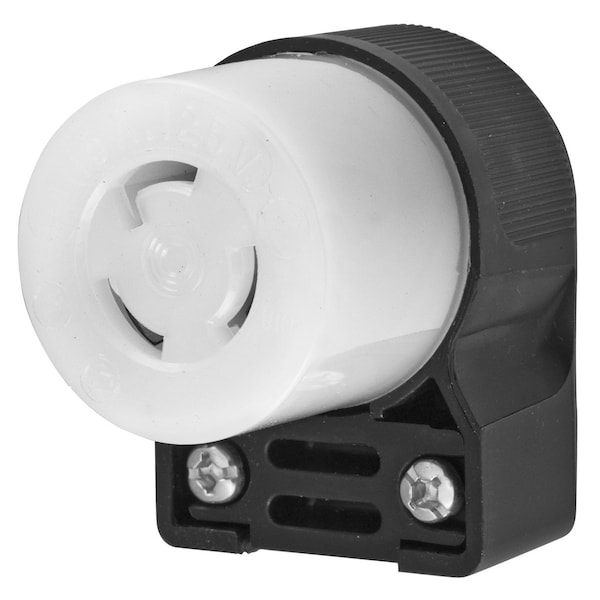

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw Terminal, Black and White
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 15 |
| Voltage | 125V AC |
| Number of Poles | 2-Pole |
| NEMA Configuration | L5-15R |
| Wiring Style | Insulgrip |
| Color - Plugs and Receptacles | Black, White |
| Color | Black, White |
| Body Material | Natural White Nylon |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; UL/CSA |
| Material | .032" Bronze |
| IP Rating | IP20 |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Application | Heavy Duty Industrial |
| Weight | 0.15 |
| Cord Dia. Range | .325"-.655" |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Dielectric Strength | 2,000V minimum |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Length | 2.08 in |
| Width | 1.52 in |
| Height | 2 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Material - Mounting Hardware | Cord Mounted |
| Current / Amperage Rating | 15 A |
| Insulation | Insulated Body |
| Amperage Rating | 15 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current Rating | 15 A |
| Wire Size | #18 AWG to #10 AWG |
| Display Size | Standard |
| Connectivity | Pressure Terminal Screws |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | L5-15R |
| Cord Range | 0.325"-0.655" |
| Number Of Wires | 3-Wire Grounding |
| Dimensions | 2.08 in x 1.52 in x 2.00 in |
| Item Type | 15A Insulgrip® Connector |
| Voltage Rating Description | 125 VAC |
| Package Quantity | 1 |
