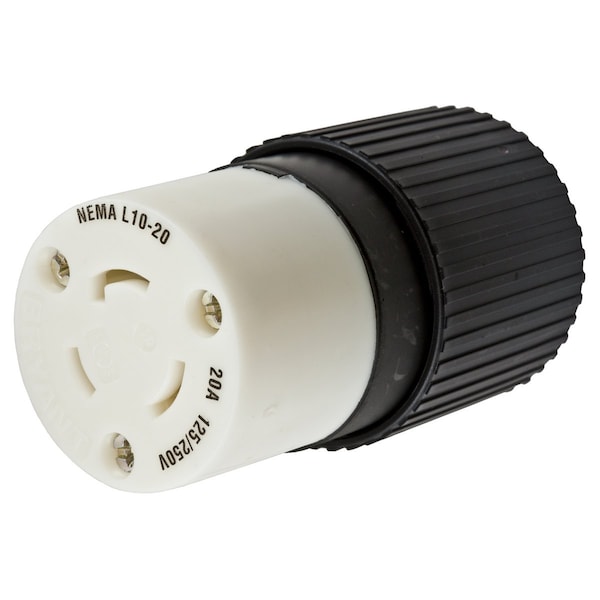

Dispositivos de bloqueo, Twist-Lock®, Industrial, Cuerpo del conector hembra, 20A 125/250V, 3 polos 3 cables sin conexión a tierra, L10-20R, Terminal de tornillo, Negro y Blanco.
| Color | Black, White |
|---|---|
| Special Features | Terminals identified in accordance with UL 498 |
| Body Material | Nylon |
| Standards | Certified for current interrupting at full rated current |
| Material | Nylon |
| IP Rating | IP20 Suitability |
| Application | Heavy Duty Industrial |
| Cord Dia. Range | .300"- 1.050" |
| Type | Connector Body |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Dielectric Strength | Withstands 2,000V minimum |
| Connectivity | Pressure Terminal Screws |
| Item Type | 20A Connector |
| Current Rating | 20 A |
| Number Of Poles | 3-Pole |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum, -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Material - Mounting Hardware | Cord Mounted |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Current / Amperage Rating | 20 A |
| Wire Size | #16 AWG to #8 AWG |
| Voltage Rating Description | 125/250 VAC |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard |
| Cord Range | 0.300"-1.050" |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 20 A |
| Cable Range | 0.3 to 1.05 in |
| Nema Rating | L10-20R |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Insulation | Insulated Body |
| Number Of Wires | 3-Wire |
| Package Quantity | 1 |
