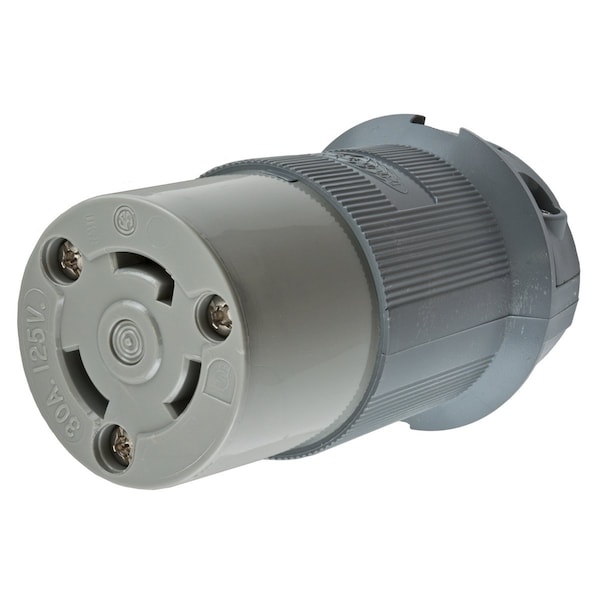

Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Gray, High Temp Version
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 30 |
| Voltage | 125V AC |
| NEMA Configuration | L5-30R |
| Number of Poles | 2 |
| Wiring Style | High Temp |
| Color - Plugs and Receptacles | Gray |
| Color | Gray |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Body Material | Gray Nylon |
| IP Rating | IP20 |
| Material | .031" (.8) Brass |
| Phase | Single Phase |
| Application | Heavy Duty Industrial |
| Cord Dia. Range | .360"-.930" |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Type | Connector Body |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Weight | 0.4 |
| Dielectric Strength | Withstands 2,000V minimum |
| Current Rating | 30 A |
| Cable Range | 0.36 to 0.93 in |
| Connectivity | Pressure Terminal Screws |
| Material - Mounting Hardware | Cord Mounted |
| Display Size | Standard |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Insulation | Insulated Body |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Dimensions | 2.26 in x 2.26 in x 3.86 in |
| Current / Amperage Rating | 30 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Environmental - Terminal Identification - Terminals identified in accordance with UL 498 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. |
| Cord Range | 0.360"-0.930" |
| Item Type | 30A Insulgrip® Connector |
| Width | 2.26 in |
| Nema Rating | L5-30R |
| Number Of Wires | 3-Wire |
| Voltage Rating Description | 125 VAC |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 30 A |
| Height | 3.86 in |
| Wire Size | #16 AWG to #8 AWG |
| Length | 2.26 in |
| Package Quantity | 1 |
