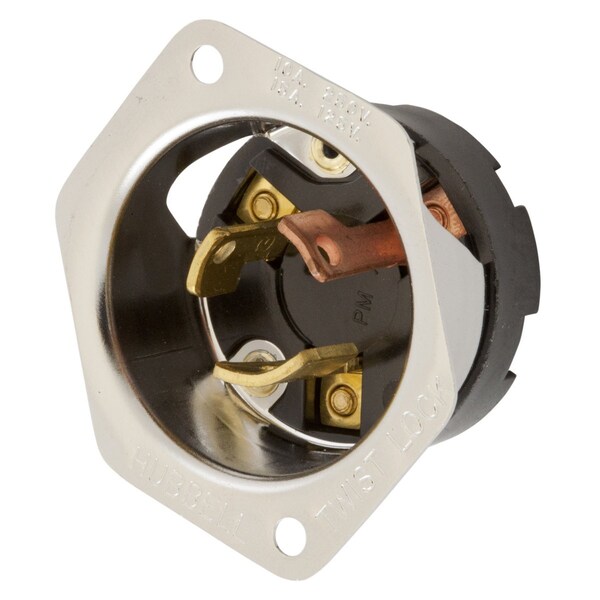

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 10A 250V/15A 125V, 3-Pole 3-Wire Non Grounding, Non-NEMA, Screw Terminal, Steel
| Item | Flanged Inlet |
|---|---|
| Voltage | 250V AC,125V |
| Color | Black |
| Number of Poles | 3-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| IP Rating | IP20 Suitability |
| Standards | Certified for current interrupting at full rated current |
| Flange Material | Stainless Steel |
| Special Features | Molded In or Stamped On |
| Material | Nickel plated |
| Application | Extra Heavy Duty Industrial |
| Weight (Lbs.) | 0.1 |
| Wire Size | 15A #14 AWG |
| Lock Type | Replacement-use |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Length | 2.31 in |
| Width | 2.31 in |
| Height | 1.13 in |
| Amperage Rating | 10/15 A |
| Number Of Wires | 3-Wire |
| Current Rating | 10 A |
| Current / Amperage Rating | 10/15 A |
| Connectivity | Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Voltage Rating Description | 250/125 V |
| Type | Flanged Inlet |
| Insulation | Insulated Body |
| Item Type | Stainless Steel Flanged Inlet |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Material - Mounting Hardware | Screw Mounting |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard Sized Product |
| Dimensions | 2.31 in x 2.31 in x 1.13 in |
| Package Quantity | 1 |
