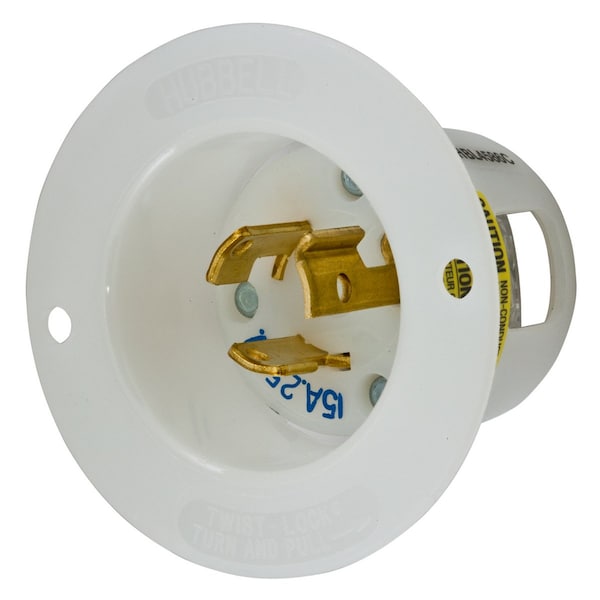

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 15A 250V, 2-Pole 3-Wire Grounding, L6-15P, Screw Terminal, White
| Item | Flanged Inlet |
|---|---|
| NEMA Configuration | L6-15P |
| Voltage | 250V AC |
| Amps | 15 |
| Color | Black, White |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Insulgrip |
| Flange Material | Natural White Nylon |
| Material | zinc plated |
| Special Features | Molded In or Stamped On |
| IP Rating | IP20 Suitability |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| Application | Extra Heavy Duty Industrial |
| Lock Type | Twist-lock |
| Wire Size | #18 AWG - #10 AWG solid or stranded copper wire only. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.1 |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Width | 2.56 in |
| Height | 1.72 in |
| Length | 2.56 in |
| Nema Rating | L6-15P |
| Material - Mounting Hardware | Screw Mounting |
| Current Rating | 15 A |
| Amperage Rating | 15 A |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Type | Flanged Inlet |
| Number Of Wires | 3-Wire |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Insulation | Insulated Body |
| Item Type | 15A Insulgrip |
| Voltage Rating Description | 250 V |
| Connectivity | Screw Terminals |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dimensions | 2.56 in x 2.56 in x 1.72 in |
| Package Quantity | 1 |
