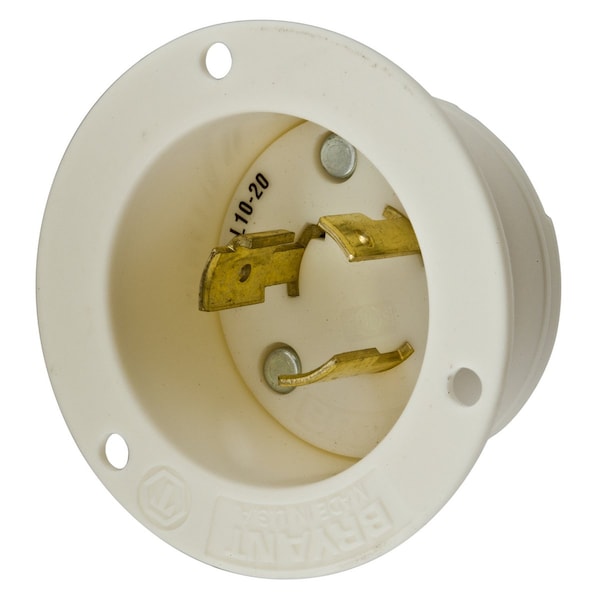

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 20A 125/250V, 3-Pole 3-Wire Non-Grounding, L10-20P, Screw Terminal, White
| Color | White |
|---|---|
| Phase | Single Phase |
| IP Rating | IP20 Suitability |
| Standards | Certified for current interrupting at full rated current |
| Mounting Type | Brass |
| Material | Nylon |
| Application | Extra Heavy Duty Industrial |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Operating Temp. | Maximum Continuous 75A Deg C.Minimum -40A Deg C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Height | 2.88 in |
| Number Of Wires | 3-Wire |
| Display Size | Standard Sized Product |
| Type | Flanged Inlet |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dimensions | 2.16 in x 2.88 in x 2.88 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating Description | 125/250 VAC |
| Item Type | 20A Insulgrip® Flanged Inlet |
| Width | 2.88 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Length | 2.16 in |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Nema Rating | L10-20P |
| Number Of Poles | 3-Pole |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Back Wired Screw Terminals |
| Insulation | Insulated Body |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 20 A |
| Package Quantity | 1 |
