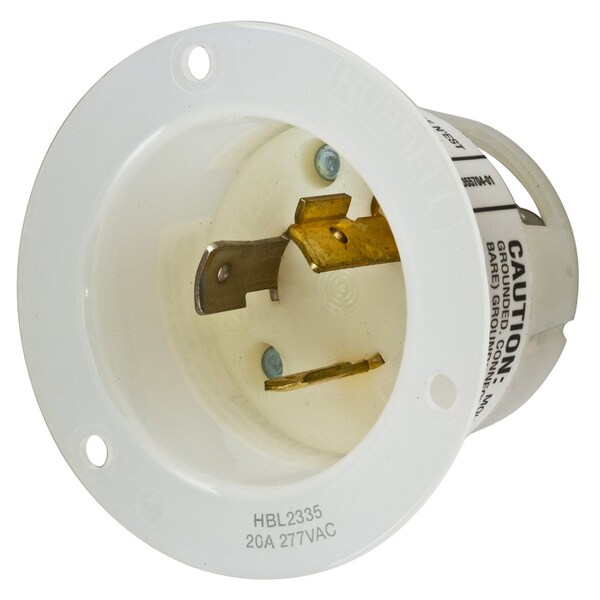

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 20A 277V AC, 2-Pole 3-Wire Grounding, L7-20P, Screw Terminal, White
| Item | Flanged Inlet |
|---|---|
| NEMA Configuration | L7-20P |
| Voltage | 277V AC |
| Amps | 20 |
| Color | White |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| Material | Nickel-plated Brass Round head screws |
| Special Features | Molded In or Stamped On |
| Flange Material | Natural White Nylon |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Application | Extra Heavy Duty Industrial |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.2 |
| Wire Size | #12 AWG |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Number Of Wires | 3-Wire |
| Voltage Rating Description | 277 VAC |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Length | 2.88 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Display Size | Standard Sized Product |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Amperage Rating | 20 A |
| Item Type | 20A Insulgrip® Flanged Inlet |
| Insulation | Insulated Body |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 2.88 in x 2.88 in x 2.09 in |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Screw Terminals |
| Current Rating | 20 A |
| Height | 2.09 in |
| Current / Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Type | Flanged Inlet |
| Nema Rating | L7-20P |
| Width | 2.88 in |
| Package Quantity | 1 |
