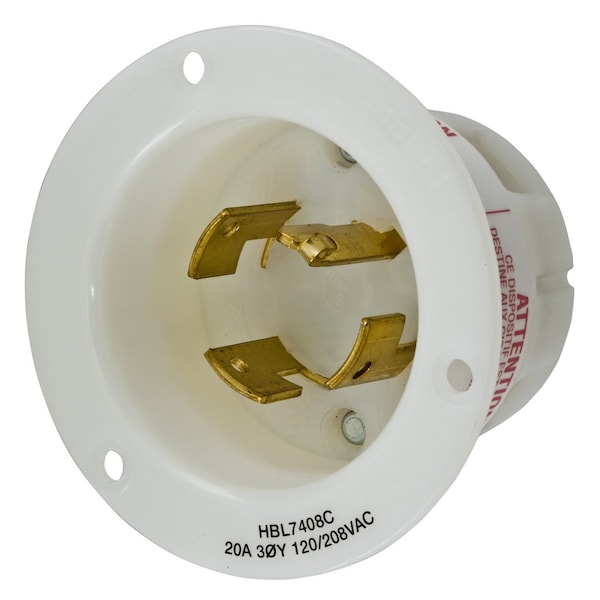

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, White
| Item | Flanged Inlet |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 120/208V AC |
| Amps | 20 |
| Color | White |
| Number of Poles | 4-Pole |
| Phase | Three Phase |
| Wiring Style | Standard |
| Standards | Certified for current interrupting at full rated current; UL |
| Special Features | Molded In or Stamped On |
| IP Rating | IP20 Suitability |
| Flange Material | Natural White Nylon |
| Material | Nickel-plated Brass Round head screws |
| Application | Extra Heavy Duty Industrial |
| Lock Type | Twist-lock |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Wire Size | #16 AWG - #10 AWG solid or stranded copper wire only |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.25 |
| Width | 3.06 in |
| Length | 3.06 in |
| Height | 2.3 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 3.06 in x 3.06 in x 2.3 in |
| Voltage Rating Description | 3 Phase WYE 120/208 VAC |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Item Type | 20A Insulgrip® Flanged Inlet |
| Dielectric Strength | Withstands 2,000V minimum |
| Amperage Rating | 20 A |
| Material - Mounting Hardware | Screw Mounting |
| Nema Rating | Non-NEMA |
| Connectivity | Back Wired Screw Terminals |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Type | Flanged Inlet |
| Current / Amperage Rating | 20 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard Sized Product |
| Insulation | Insulated Body |
| Current Rating | 20 A |
| Number Of Wires | 4-Wire |
| Package Quantity | 1 |
