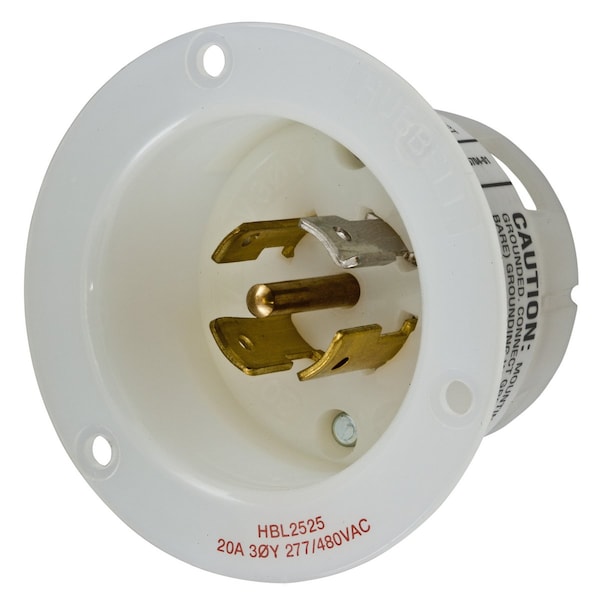

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, L22-20P, Screw Terminal, White
| Item | Flanged Inlet |
|---|---|
| NEMA Configuration | L22-20P |
| Voltage | 277/480V AC |
| Amps | 20 |
| Color | White |
| Number of Poles | 4-Pole |
| Phase | 3 Phase WYE |
| Wiring Style | Standard |
| Flange Material | Natural White Nylon |
| IP Rating | IP20 Suitability |
| Special Features | Molded In or Stamped On |
| Material | Nickel-plated Brass Round head screws |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Application | Extra Heavy Duty Industrial |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Operating Temp. | Maximum Continuous 75A Deg C. Minimum -40A Deg C (w/o impact) |
| Lock Type | Twist-lock |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.25 |
| Wire Size | #12 AWG |
| Item Type | 20A Insulgrip® Flanged Inlet |
| Height | 2.27 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 3 Phase WYE 277/480 VAC |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Insulation | Insulated Body |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Number Of Wires | 5-Wire |
| Dimensions | 3.06 in x 3.06 in x 2.27 in |
| Nema Rating | L22-20P |
| Length | 3.06 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Connectivity | Back Wired Screw Terminals |
| Material - Mounting Hardware | Screw Mounting |
| Current Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Type | Flanged Inlet |
| Amperage Rating | 20 A |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Width | 3.06 in |
| Package Quantity | 1 |
