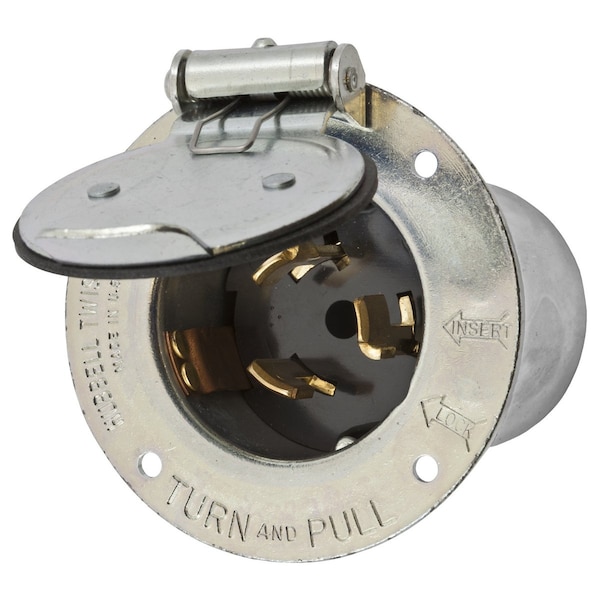

Dispositivos de bloqueo, Twist-Lock®, Industrial, entrada con brida, 50A, 125/250V, 3 polos 4 cables de puesta a tierra, sin NEMA, terminal de tornillo, acero, con cubierta deslizante.
| Voltage | 125/250 VAC |
|---|---|
| Amps | 50 |
| Color | Metallic |
| Phase | Single Phase |
| Material | zinc plated Steel |
| Mounting Type | Screw Mounting |
| Application | Extra Heavy Duty Industrial |
| Wire Size | #10 AWG to #6 AWG |
| Operating Temp. | Maximum continuous 75A Deg C and minimum -40A Deg C without Impact |
| Number Of Wires | 4-Wire |
| Number Of Poles | 3-Pole |
| Type | Flanged Inlet |
| Length | 2.17 in |
| Dimensions | 2.17 in x 3-1/2 in x 2.63 in |
| Current / Amperage Rating | 50 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only |
| Dielectric Strength | Withstands 2,000V minimum |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 50 A |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 50 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 125/250 VAC |
| Display Size | Standard Sized Product |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Height | 2.63 in |
| Connectivity | Pressure Terminal Screws |
| Item Type | Single Flanged Inlet |
| Width | 3-1/2 in |
| Package Quantity | 1 |
