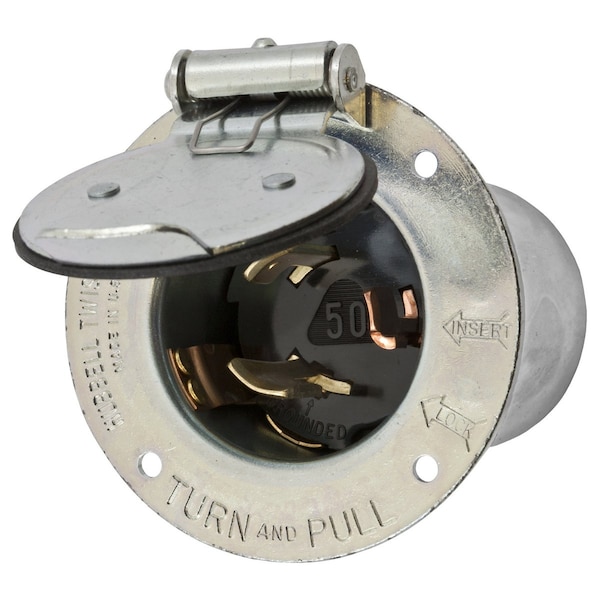

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V AC/600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal
| Item | Flanged Inlet |
|---|---|
| Voltage | 250V DC, 600V AC |
| Amps | 50 |
| Color | Metallic |
| Number of Poles | 2-Pole |
| Phase | Three Phase |
| Wiring Style | With Lift Cover |
| Special Features | Molded In or Stamped On |
| Material | zinc plated Steel |
| Flange Material | Steel Weldment |
| Standards | Certified for current interrupting at full rated current; UL |
| Application | Extra Heavy Duty Industrial |
| Lock Type | Twist-lock |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Wire Size | #6AWG |
| Weight (Lbs.) | 1.05 |
| Type | Flanged Inlet |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Wires | 3-Wire |
| Voltage Rating Description | 250 VDC/600 VAC |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 50 A |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Listed to UL 498 |
| Connectivity | Pressure Terminal Screws |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum to40°C (w/o impact) Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only |
| Dimensions | 2.17 in x 3-1/2 in x 2.56 in |
| Length | 2.17 in |
| Height | 2.56 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dielectric Strength | Withstands 2,000V minimum |
| Display Size | Standard Sized Product |
| Width | 3-1/2 in |
| Item Type | 50A Flanged Inlet |
| Amperage Rating | 50 A |
| Current Rating | 50 A |
| Package Quantity | 1 |
