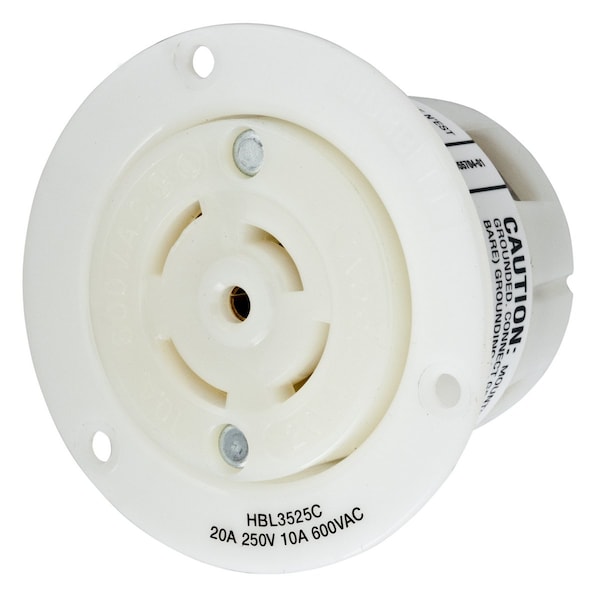

Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 20A 250V DC/600V AC, 4-Pole 5-Wire Grounding, Non- NEMA, Screw Terminal, White
| Item | Flanged Inlet |
|---|---|
| NEMA Configuration | Non-NEMA |
| Amps | 20 |
| Color | White |
| Number of Poles | 4-Pole |
| Phase | Multi Phase |
| Wiring Style | Standard |
| Material | Nickel-plated Brass Round head screws |
| IP Rating | IP20 Suitability |
| Flange Material | Natural White Nylon |
| Special Features | Molded In or Stamped On |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| Application | Insulgrip |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Spring Material | Brass |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Lock Type | Twist-lock |
| Weight (Lbs.) | 0.35 |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Wire Size | #10 AWG |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Current / Amperage Rating | 2 A |
| Item Type | Flanged Receptacle |
| Display Size | Standard Sized Product |
| Current Rating | 20 A |
| Height | 2.23 in |
| Amperage Rating | 20/10 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Width | 3.06 in |
| Type | Flanged Receptacle |
| Number Of Wires | 5-Wire |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 3.06 in x 3.06 in x 2.23 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 250/600 VAC |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Connectivity | Back Wired Screw Terminals |
| Length | 3.06 in |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Nema Rating | Non-NEMA |
| Package Quantity | 1 |
