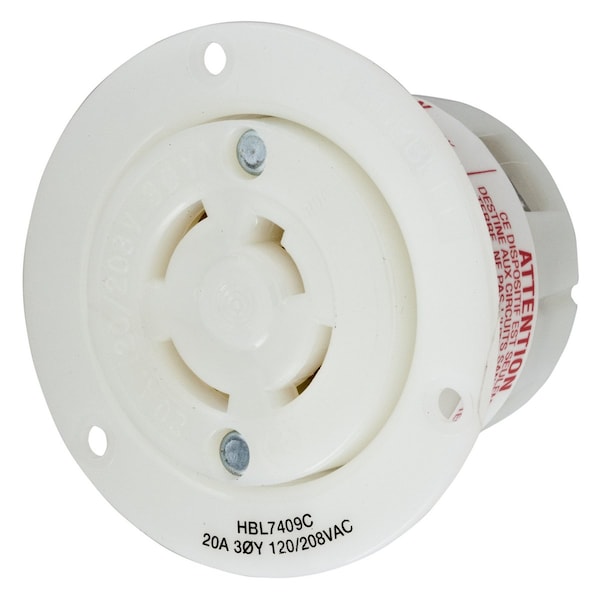

Dispositivos de bloqueo, Twist-Lock®, Industrial, Receptáculo Bridado, 20A 3 Fases Wye 120/208V CA, 4 Polos 4 Cables sin conexión a tierra, No-NEMA, Terminal de tornillo.
| Item | Flanged Receptacle |
|---|---|
| NEMA Configuration | Non-NEMA |
| Voltage | 120/208V AC |
| Amps | 20 |
| Color | White |
| Number of Poles | 4-Pole |
| Phase | Three Phase |
| Wiring Style | Standard |
| Standards | Certified for current interrupting at full rated current; UL |
| Flange Material | Natural White Nylon |
| Special Features | Molded In or Stamped On |
| Material | Nickel-plated Brass Round head screws |
| IP Rating | IP20 Suitability |
| Application | Insulgrip |
| Lock Type | Twist-lock |
| Spring Material | Brass |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Wire Size | #12 AWG |
| Weight (Lbs.) | 0.4 |
| Current Rating | 20 A |
| Height | 2.4 in |
| Length | 3.06 in |
| Type | Flanged Receptacle |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Number Of Wires | 4-Wire |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Display Size | Standard Sized Product |
| Connectivity | Back Wired Screw Terminals |
| Dimensions | 3.06 in x 3.06 in x 2.4 in |
| Item Type | Flanged Receptacle |
| Amperage Rating | 20 A |
| Width | 3.06 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 20 A |
| Nema Rating | Non-NEMA |
| Voltage Rating Description | 3 Phase WYE 120/208 VAC |
| Dielectric Strength | Withstands 2,000V minimum |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Package Quantity | 1 |
