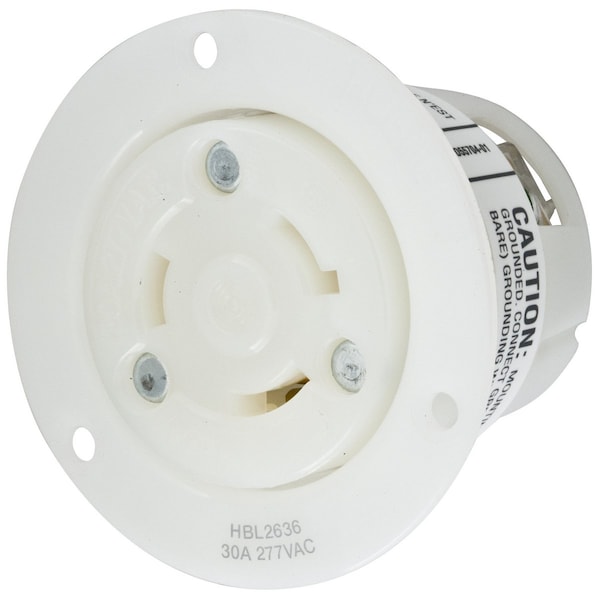

Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 277V AC, 2-Pole 3-Wire Grounding, L7-30R, Screw Terminal, White
| Item | Flanged Receptacle |
|---|---|
| NEMA Configuration | L7-30R |
| Voltage | 277V AC |
| Amps | 30 |
| Color | White |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| IP Rating | IP20 Suitability |
| Special Features | Molded In or Stamped On |
| HP | 3 |
| Material | Nickel-plated Brass Round head screws |
| Flange Material | Natural White Nylon |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Application | Heavy Duty Industrial |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Lock Type | Twist-lock |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Weight (Lbs.) | 0.25 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Spring Material | Brass |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Wire Size | #10 AWG |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Height | 2.09 in |
| Type | Flanged Receptacle |
| Dimensions | 2.88 in x 2.88 in x 2.09 in |
| Amperage Rating | 30 A |
| Current Rating | 30 A |
| Current / Amperage Rating | 30 A |
| Number Of Wires | 3-Wire |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 277 VAC |
| Horsepower - Maximum | 3 |
| Nema Rating | L7-30R |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Connectivity | Back Wired Screw Terminals |
| Width | 2.88 in |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | Insulgrip® Flanged Receptacle, 30A Insulgrip® Receptacle |
| Display Size | Standard Sized Product |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Length | 2.88 in |
| Package Quantity | 1 |
