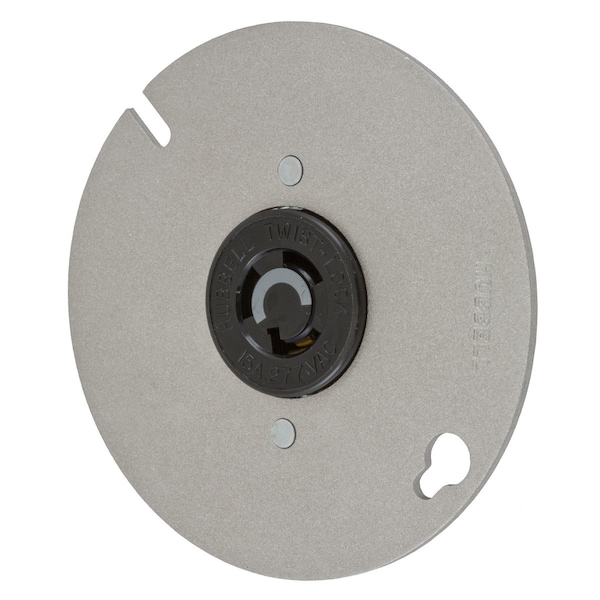

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15R, Screw Terminal, Mounted to 4"Box Cover
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L7-15R |
| Voltage | 277V AC |
| Amps | 15 |
| Color | Black |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Standard |
| Standards | Certified for current interrupting at full rated current; UL/CSA |
| Material | Steel-zinc-plated |
| HP | 2 |
| Special Features | Molded In or Stamped On |
| Application | Heavy Duty Industrial |
| Lock Type | Twist-lock |
| Base Material | Black Polyester |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Weight (Lbs.) | 0.25 |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Spring Material | .031" Brass |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #18 AWG - #10 AWG solid or stranded copper wire only. |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Width | 4.12 in |
| Height | 1.27 in |
| Length | 4.12 in |
| Current Rating | 15 A |
| Voltage Rating Description | 277 VAC |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dimensions | 4.12 in x 4.12 in x 1.27 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Current / Amperage Rating | 15 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Horsepower - Maximum | 2 |
| Connectivity | Side Wired |
| Amperage Rating | 15 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Type | Receptacle |
| Number Of Wires | 3-Wire |
| Display Size | Standard Sized Product |
| Nema Rating | L7-15R |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | 15A Single Flush Receptacle, Grounding Single Flush Receptacle |
| Package Quantity | 1 |
