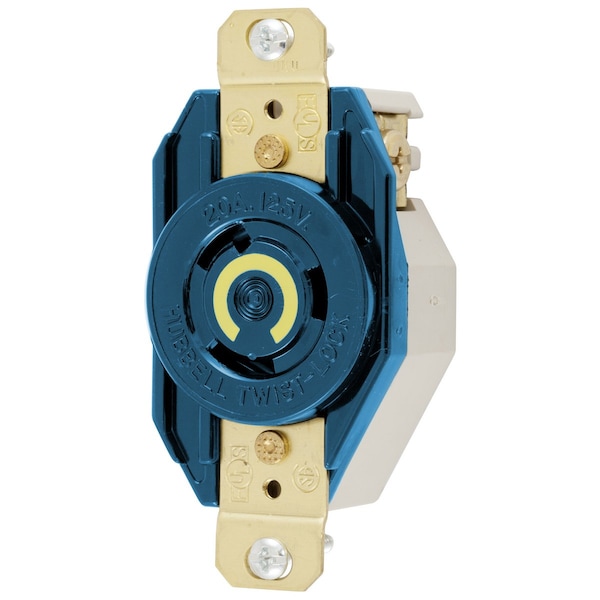

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Blue
| Voltage | 125 VAC |
|---|---|
| Amps | 20 |
| Phase | Single Phase |
| Mounting Type | Screw Mounting |
| Material | Nylon |
| Application | Heavy Duty Industrial |
| Operating Temp. | Maximum continuous 75A Deg C and minimum -40A Deg C without Impact |
| Wire Size | #16 AWG to #8 AWG |
| Number Of Poles | 2-Pole |
| Nema Rating | L5-20R |
| Number Of Wires | 3-Wire |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Display Size | Standard Sized Product |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Current Rating | 20 A |
| Length | 3.28 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | Single Flush Receptacles |
| Voltage Rating Description | 125 VAC |
| Height | 1.23 in |
| Type | Single Flush Receptacle |
| Width | 1.7 in |
| Current / Amperage Rating | 20 A |
| Dimensions | 3.28 in x 1.7 in x 1.23 in |
| Connectivity | Back and Side Wired |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Package Quantity | 1 |
