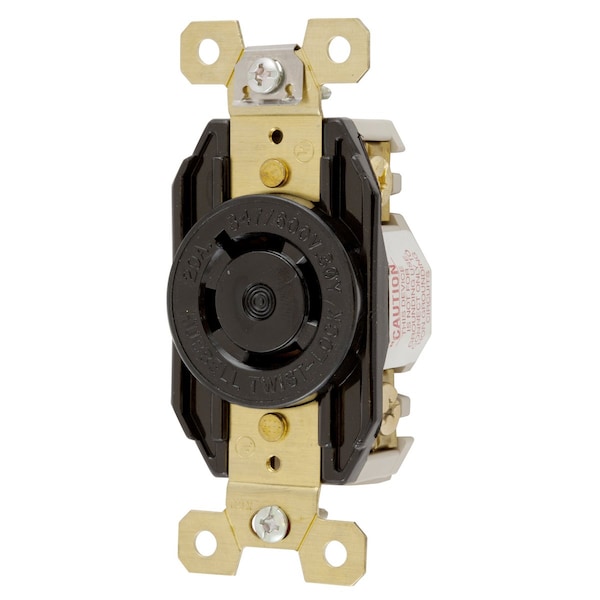

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 20A 3-Phase WYE 347/600V AC, 4-Pole 4-Wire Non- Grounding, L20-20R, Screw Terminal, Black
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L20-20R |
| Voltage | 347/600V AC |
| Amps | 20 |
| Color | Black |
| Number of Poles | 4-Pole |
| Phase | 3 Phase WYE |
| Wiring Style | Standard |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL |
| IP Rating | IP20 Suitability |
| Special Features | Molded In or Stamped On |
| Material | Steel-zinc-plated |
| Application | Heavy Duty Industrial |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Spring Material | .040" Brass |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Weight (Lbs.) | 0.3 |
| Lock Type | Twist-lock |
| Base Material | Nylon Polyester |
| Wire Size | #12 AWG |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Type | Single Flush Receptacle |
| Current Rating | 20 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Display Size | Standard Sized Product |
| Dimensions | 3.28 in x 1.7 in x 1.23 in |
| Amperage Rating | 20 A |
| Voltage Rating Description | 3 Phase WYE 347/600 VAC |
| Number Of Wires | 4-Wire |
| Nema Rating | L20-20R |
| Material - Mounting Hardware | Screw Mounting |
| Length | 3.28 in |
| Current / Amperage Rating | 20 A |
| Height | 1.23 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Width | 1.7 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dielectric Strength | Withstands 2,000V minimum |
| Connectivity | Back and Side Wired Screw Terminals |
| Item Type | Single Flush Receptacles |
| Package Quantity | 1 |
