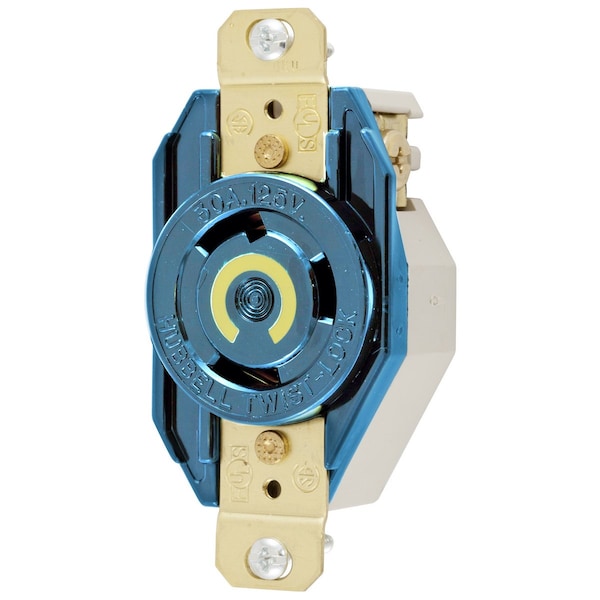

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Blue
| Color | Blue |
|---|---|
| Phase | Single Phase |
| IP Rating | IP20 Suitability |
| Material | Nylon |
| Standards | Certified for current interrupting at full rated current |
| Mounting Type | Brass |
| Application | Industrial Grade |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Current / Amperage Rating | 30 A |
| Length | 3.28 in |
| Voltage Rating Description | 125 VAC |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Number Of Poles | 2-Pole |
| Connectivity | Back and Side Wired Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Amperage Rating | 30 A |
| Type | Single Flush Receptacle |
| Nema Rating | L5-30R |
| Dimensions | 3.28 in x 1.7 in x 1.31 in |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | Single Flush Receptacles |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Height | 1.31 in |
| Number Of Wires | 3-Wire |
| Current Rating | 30 A |
| Width | 1.7 in |
| Package Quantity | 1 |
