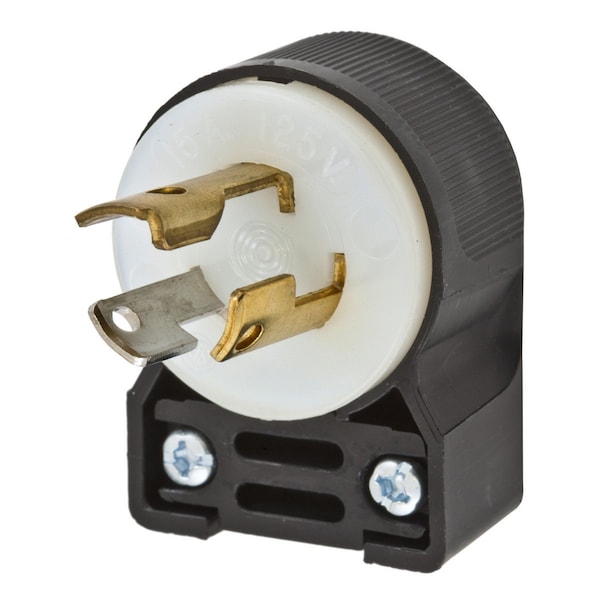

Dispositivos de bloqueo, Twist-Lock®, Industrial, Macho, 15A 125V, 2 polos 3 cables a tierra, L5-15P, Terminal de tornillo, Negro y Blanco, Angulado.
| Item - Plugs and Receptacles | Insulgrip |
|---|---|
| Length | 2.08 in |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2-Pole, 3-Wire Grounding |
| Phase | Single Phase |
| Cord Size | .325"-.655" |
| HP | 1/2 |
| NEMA Configuration | L5-15P |
| Color | Black, White |
| Standards | Terminals identified in accordance with UL 498,UL/CSA. |
| IP Rating | IP20 Suitability |
| Material | Nylon |
| Application | Extra Heavy Duty Industrial |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Weight (Lbs.) | 0.15 |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #16 AWG to #8 AWG |
| Blade Material | Brass |
| Operating Temp. | Maximum Continuous 75A deg C Minimum -40A deg C (w/o impact) |
| Width | 1.52 in |
| Height | 1.21 in |
| Cord Type | All Listed Portables |
| Connectivity | Pressure Terminal Screws |
| Item Type | 15A Insulgrip Plug |
| Voltage Rating Description | 125 V |
| Nema Rating | L5-15P |
| Current Rating | 15 A |
| Dimensions | 2.08 in x 1.52 in x 1.21 in |
| Amperage Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 15 A |
| Number Of Wires | 3-Wire |
| Horsepower - Maximum | 0.5 |
| Cord Range | 0.325"-0.655" |
| Display Size | Standard Sized |
| Type | Plugs |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Cable Range | 0.325 to 0.655 in |
| Package Quantity | 1 |
