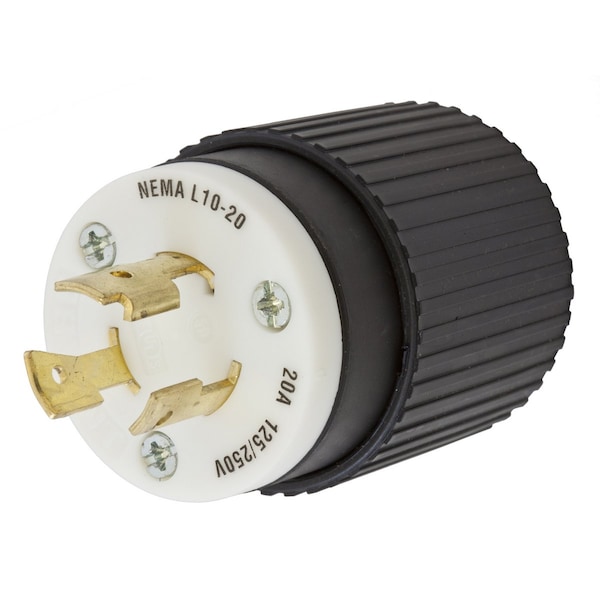

Dispositivos de bloqueo, Twist-Lock®, Industrial, Enchufe macho, 20A 125/250V, 3 polos 3 hilos sin toma de tierra, L10-20P, Terminal de tornillo, negro y blanco.
| Length | 2-3/4 in |
|---|---|
| Phase | Single Phase |
| Application | Extra Heavy Duty Industrial |
| Standards | Terminals identified in accordance with UL 498 |
| Color | Black, White |
| IP Rating | IP20 Suitability |
| Material | Nylon |
| Cord Size | 0.3 to 1.05 in |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Operating Temp. | Maximum Continuous 75A deg C; Minimum -40A deg C (w/o impact) |
| Wire Size | #16 AWG to #8 AWG |
| Cord Type | All Listed Portables |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Voltage Rating Description | 125/250 VAC |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Width | 2.26 in |
| Connectivity | Pressure Terminal Screws |
| Dimensions | 2-3/4 in x 2.26 in x 2.26 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Display Size | Standard Sized |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Cord Range | 0.300"-1.050" |
| Number Of Wires | 3-Wire |
| Height | 2.26 in |
| Current / Amperage Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Current Rating | 20 A |
| Amperage Rating | 20 A |
| Cable Range | 0.3 to 1.05 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Type | Plugs |
| Material - Mounting Hardware | Cord Mounted |
| Nema Rating | L10-20P |
| Number Of Poles | 3-Pole |
| Item Type | 20A Male Insulgrip® Plug |
| Package Quantity | 1 |
