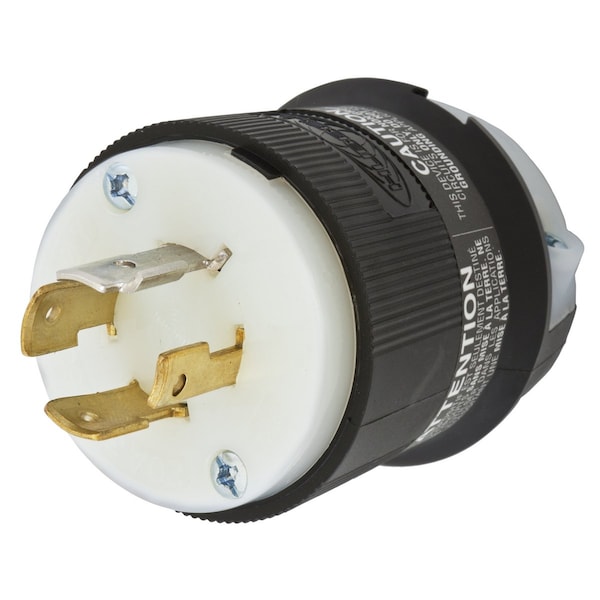

Locking Devices, Twist-Lock®, Industrial, Male Plug, 20A 3-Phase 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20-20P, Screw Terminal, Black and White
| Item - Plugs and Receptacles | Insulgrip |
|---|---|
| Length | 2.33 in |
| Amps - Plugs and Receptacles | 20A |
| Voltage - Plugs and Receptacles | 3 Phase Y 347/600V AC |
| Number of Poles | 4-Pole, 4-Wire Non-Grounding |
| Phase | 3 Phase WYE |
| IP Rating | IP20 |
| Color | Black, White |
| NEMA Configuration | L20-20P |
| Material | Nylon |
| Standards | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Cord Size | .35"-1.15" |
| Application | Extra Heavy Duty Industrial |
| Wire Size | #16 AWG to #8 AWG |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.3 |
| Blade Material | Brass |
| Height | 2-3/4 in |
| Width | 2.33 in |
| Cord Range | 0.350"-1.150" |
| Item Type | 20A Male Insulgrip® Plug |
| Display Size | Standard Sized |
| Amperage Rating | 20 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Dimensions | 2.33 in x 2.33 in x 2-3/4 in |
| Cable Range | 0.35 to 1.15 in |
| Nema Rating | L20-20P |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Number Of Wires | 4-Wire |
| Dielectric Strength | Withstands 2,000V minimum |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 3 Phase WYE 347/600 VAC |
| Cord Type | All Listed Portables |
| Material - Mounting Hardware | Cord Mounted |
| Type | Plugs |
| Package Quantity | 1 |
