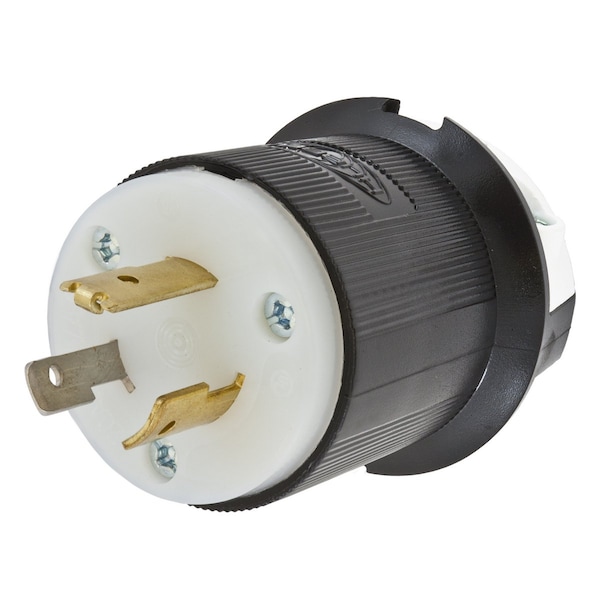

Locking Devices, Twist-Lock®, Industrial, Male Plug, 20A 347V AC, 2-Pole 3-Wire Grounding, L24-20P, Screw Terminal, Black and White
| Item - Plugs and Receptacles | Insulgrip |
|---|---|
| Length | 2-3/4 in |
| Amps - Plugs and Receptacles | 20A |
| Voltage - Plugs and Receptacles | 347V AC |
| Number of Poles | 2-Pole, 3-Wire Grounding |
| Phase | Single Phase |
| Cord Size | .360"-.930" |
| NEMA Configuration | L24-20P |
| Material | Nylon |
| Standards | Terminals identified in accordance with UL 498 |
| Color | Black, White |
| IP Rating | IP20 Suitability |
| Application | Extra Heavy Duty Industrial |
| Wire Size | #12 AWG to #10 AWG |
| Flammability | HB or better per UL94/CSA 22.2 No.0.17 |
| Operating Temp. | Maximum Continuous 75A deg C; Minimum -40A deg C (w/o impact) |
| Weight (Lbs.) | 0.3 |
| Height | 2.26 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Cable Range | 0.36 to 0.93 in |
| Material - Mounting Hardware | Cord Mounted |
| Cord Range | 0.360"-0.930" |
| Connectivity | Pressure Terminal Screws |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Display Size | Standard Sized |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Wires | 3-Wire |
| Nema Rating | L24-20P |
| Dimensions | 2-3/4 in x 2.26 in x 2.26 in |
| Item Type | Plug |
| Voltage Rating Description | 347 VAC |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Cord Type | All Listed Portables |
| Width | 2.26 in |
| Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
