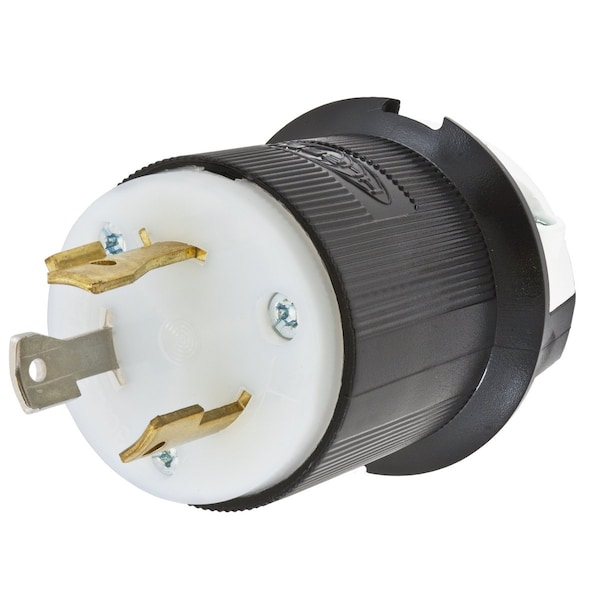

Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 277V AC, 2-Pole 3-Wire Grounding, L7-30P, Screw Terminal, Black and White
| Item - Plugs and Receptacles | Insulgrip |
|---|---|
| Length | 2.26 in |
| Amps - Plugs and Receptacles | 30A |
| Voltage - Plugs and Receptacles | 277V AC |
| Number of Poles | 2-Pole, 3-Wire Grounding |
| Phase | Single Phase |
| NEMA Configuration | L7-30P |
| Color | Black, White |
| Application | Extra Heavy Duty Industrial |
| Cord Size | .360"-.930" |
| Standards | Terminals identified in accordance with UL 498, FED SPEC UL/CSA |
| HP | 3 |
| IP Rating | IP20 |
| Material | Nylon |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Weight (Lbs.) | 0.25 |
| Operating Temp. | Maximum Continuous 75A deg C; Minimum -40A deg C (w/o impact) |
| Blade Material | Brass |
| Wire Size | #16 AWG to #8 AWG |
| Width | 2.26 in |
| Height | 2-3/4 in |
| Number Of Wires | 3-Wire |
| Voltage Rating Description | 277 VAC |
| Cord Range | 0.360"-0.930" |
| Dielectric Strength | Withstands 2,000V minimum |
| Amperage Rating | 30 A |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard Sized |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Horsepower - Maximum | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Type | Plugs |
| Item Type | Plug |
| Material - Mounting Hardware | Cord Mounted |
| Cable Range | 0.36 to 0.93 in |
| Dimensions | 2.26 in x 2.26 in x 2-3/4 in |
| Nema Rating | L7-30P |
| Current Rating | 30 A |
| Current / Amperage Rating | 30 A |
| Cord Type | All Listed Portables |
| Package Quantity | 1 |
