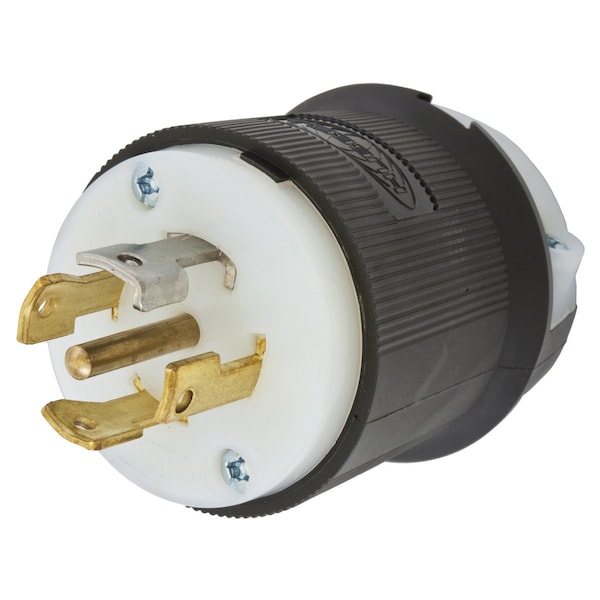

Dispositivos de bloqueo, Twist-Lock®, Industrial, Enchufe macho, 30A 3 Fases 347/600V CA, Conductor 4 Polos 5 Cables a tierra, L23-30P, Terminal de tornillo, Negro y blanco.
| Item - Plugs and Receptacles | Insulgrip |
|---|---|
| Length | 2.33 in |
| Amps - Plugs and Receptacles | 30A |
| Voltage - Plugs and Receptacles | 3 Phase Y 347/600V AC |
| Number of Poles | 4-Pole, 5-Wire Grounding |
| Phase | 3 Phase WYE |
| Material | Nylon |
| NEMA Configuration | L23-30P |
| Application | Extra Heavy Duty Industrial |
| Color | Black, White |
| IP Rating | IP20 Suitability |
| Standards | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green),UL/CSA |
| Cord Size | .35"-1.15" |
| Blade Material | Brass |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Weight (Lbs.) | 0.35 |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Width | 2.33 in |
| Height | 2-3/4 in |
| Cord Range | 0.350"-1.150" |
| Amperage Rating | 30 A |
| Current Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| Display Size | Standard Sized |
| Current / Amperage Rating | 30 A |
| Item Type | Plug |
| Cord Type | All Listed Portables |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Type | Plugs |
| Cable Range | 0.35 to 1.15 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Number Of Wires | 5-Wire |
| Voltage Rating Description | 3 Phase WYE 347/600 VAC |
| Nema Rating | L23-30P |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Dimensions | 2.33 in x 2.33 in x 2-3/4 in |
| Connectivity | Pressure Terminal Screws |
| Dielectric Strength | Withstands 2,000V minimum |
| Package Quantity | 1 |
