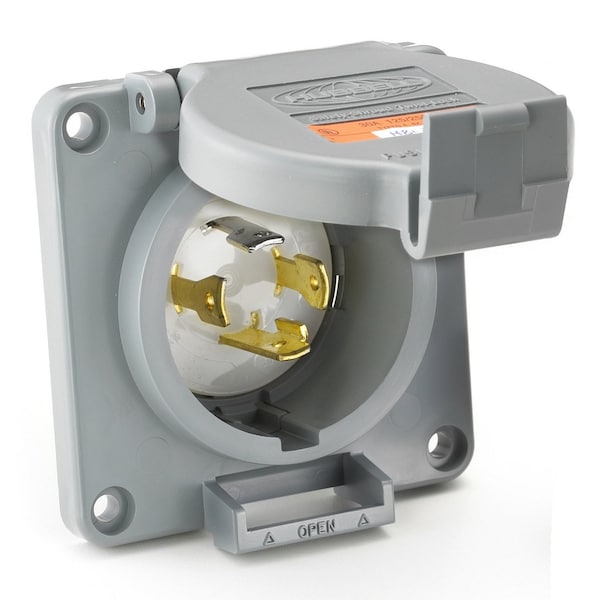

Locking Devices, Twist-Lock®, Industrial, Reversed Service Flanged Inlet, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30P, Screw Terminal, Gray
| Color | Gray |
|---|---|
| Phase | Single Phase |
| Material | Thermoplastic |
| Standards | Certified for current interrupting at full rated current |
| IP Rating | IP66 |
| Application | Extra Heavy Duty Industrial |
| Operating Temp. | Maximum Continuous 75A Deg C Minimum -40A Deg C (w/o impact) |
| Flammability | V0 per UL94 or CSA 22.2 No.0.17 |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Dimensions | 3-3/4 in x 3-3/4 in x 2.69 in |
| Length | 3-3/4 in |
| Height | 2.69 in |
| Current Rating | 30 A |
| Item Type | 30A Watertight Safety-Shroud |
| Material - Mounting Hardware | Screw Mounting |
| Current / Amperage Rating | 30 A |
| Amperage Rating | 30 A |
| Environmental Conditions | Watertight |
| Number Of Poles | 3-Pole |
| Industry Standard(s) | UL Listed, CSA Certified To Type 4, 4X And Type 12 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Display Size | Standard Sized Product |
| Number Of Wires | 4-Wire |
| Voltage Rating Description | 125/250 VAC |
| Dielectric Strength | Withstands 2,000V minimum |
| Type | Device |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17 Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Connectivity | Back Wired Screw Terminals |
| Insulation | Insulated Body |
| Width | 3-3/4 in |
| Package Quantity | 1 |
