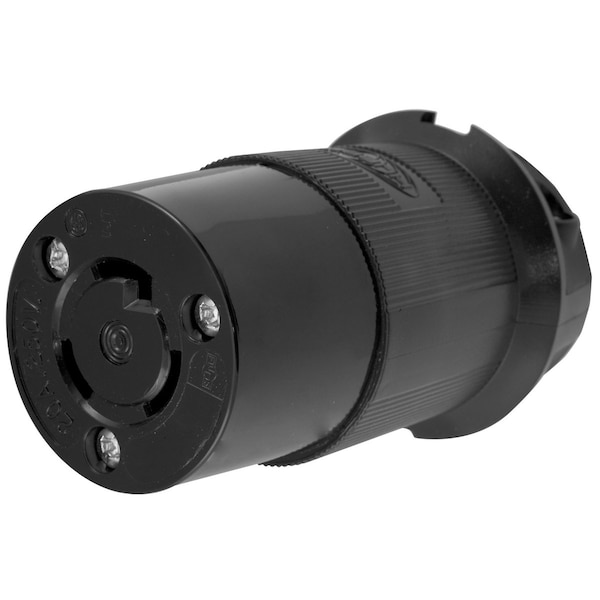

Locking Devices, Twist-Lock®, Insulgrip® Connector, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20R, Cord clamps with removable inserts nylon.
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 20 |
| Voltage | 250V AC |
| NEMA Configuration | L6-20R |
| Number of Poles | 2-Pole |
| Wiring Style | Insulgrip |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Material | .031" (.8) Brass |
| IP Rating | IP20 |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Body Material | Natural White Nylon |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Application | Heavy Duty Industrial |
| Dielectric Strength | 2,000V minimum |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Cord Dia. Range | .360"-.930" |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Weight | 0.15 |
| Height | 3.86 in |
| Length | 2.26 in |
| Width | 2.26 in |
| Current Rating | 20 A |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Insulation | Insulated Body |
| Cord Range | 0.360"-0.930" |
| Wire Size | #16 AWG to #8 AWG |
| Horsepower - Maximum | 2 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Number Of Wires | 3-Wire Grounding |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard |
| Dimensions | 2.26 in x 2.26 in x 3.86 in |
| Material - Mounting Hardware | Cord Mounted |
| Voltage Rating Description | 250 VAC |
| Nema Rating | L6-20R |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Item Type | Connector, 20A Insulgrip |
| Connectivity | Screw Terminals |
| Package Quantity | 1 |
