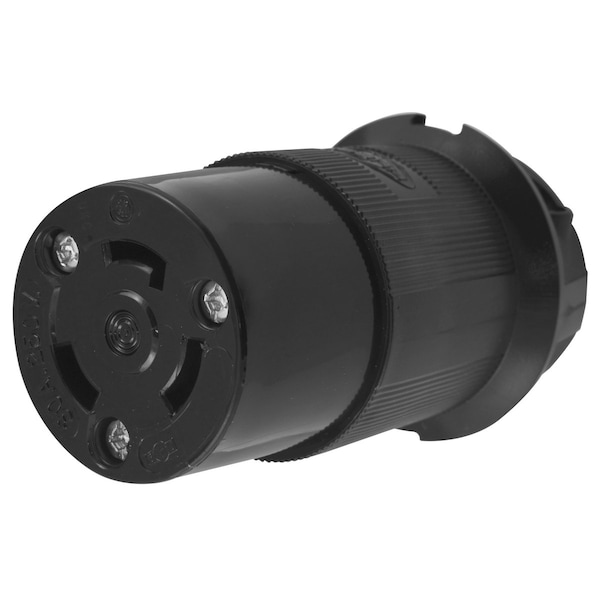

Locking Devices, Twist-Lock®, Insulgrip® Connector, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Cord clamps with removable inserts Nylon
| Item - Plugs and Receptacles | 30A InsulgripÂ, Connector |
|---|---|
| Amps | 30 |
| Voltage | 250V kV |
| Color - Plugs and Receptacles | Black |
| Color | Black |
| Material | Composite |
| Application | Heavy Duty Industrial |
| Number Of Wires | 3-Wire Grounding |
| Number Of Poles | 2-Pole |
| Nema Rating | L6-30R |
| Listings | UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Conductor Range | #12 AWG to #8 AWG |
| Connectivity | Screw Terminals |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #16 AWG to #8 AWG |
| Current / Amperage Rating | 30 A |
| Item Type | 30A Insulgrip® Connector |
| Insulation | Insulated Body |
| Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Display Size | Standard |
| Current Rating | 30 A |
| Voltage Rating | 250V kV |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Number Of Conductors | 3-Wire Grounding |
| Package Quantity | 1 |
