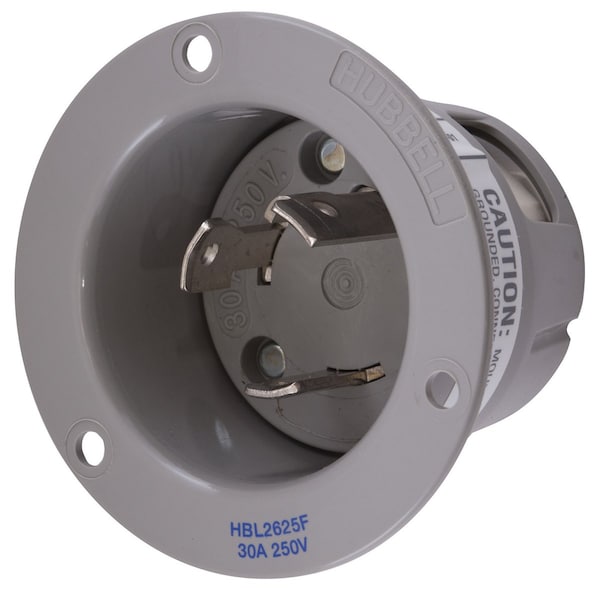

Dispositivos de bloqueo, Twist-Lock®, Entrada con brida de Insulgrip®, 30A, 250V CA, 2 polos, conexión a tierra de 3 hilos, NEMA L6-30P, nylon gris estabilizado al calor.
| Item - Plugs and Receptacles | Flanged Inlet |
|---|---|
| Amps | 30 |
| Voltage | 250V AC |
| NEMA Configuration | L6-30P |
| Number of Poles | 2-Pole |
| Wiring Style | High Temp |
| Flange Material | Nylon |
| Color - Plugs and Receptacles | Gray |
| Color | Gray |
| Material | Nylon |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Special Features | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Phase | Single Phase |
| Body Material | Gray Nylon |
| Application | Extra Heavy Duty Industrial |
| Dielectric Strength | 2,000V minimum |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Weight | 0.2 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Number Of Wires | 3-Wire Grounding |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Dimensions | 2.88 in x 2.88 in x 2.16 in |
| Current / Amperage Rating | 30 A |
| Height | 2.16 in |
| Item Type | 30A Insulgrip® Flanged Inlet |
| Voltage Rating Description | 250 VAC |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | L6-30P |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 30 A |
| Insulation | Insulated Body |
| Length | 2.88 in |
| Display Size | Standard Sized Product |
| Connectivity | Screw Terminals |
| Current Rating | 30 A |
| Material - Mounting Hardware | Screw Mounting |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Width | 2.88 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #16 AWG to #8 AWG |
| Package Quantity | 1 |
