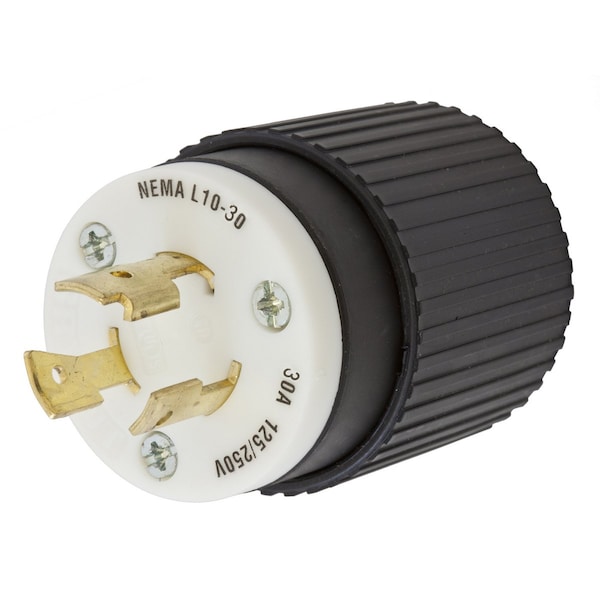

Locking Devices, Twist-Lock®, Insulgrip® Plug, 30A, 125/250V AC, 3 Pole, 3 Wire Non-Grounding, NEMA L10-30P, Black and white nylon
| Amps - Plugs and Receptacles | 30 A |
|---|---|
| Phase | Single Phase |
| Application | Extra Heavy Duty Industrial |
| Color | Black, White |
| Material | Nylon |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temp. | Maximum continuous 75A deg C and minimum -40A deg C without Impact |
| Number Of Wires | 3-Wire Non-Grounding |
| Nema Rating | L10-30P |
| Number Of Poles | 3-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Voltage Rating Description | 125/250 VAC |
| Dielectric Strength | Withstands 2,000V minimum |
| Item Type | Plug |
| Current Rating | 30 A |
| Listings | UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Cord Range | 0.300"-0.950" |
| Current / Amperage Rating | 30 A |
| Amperage Rating | 30 A |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Package Quantity | 1 |
