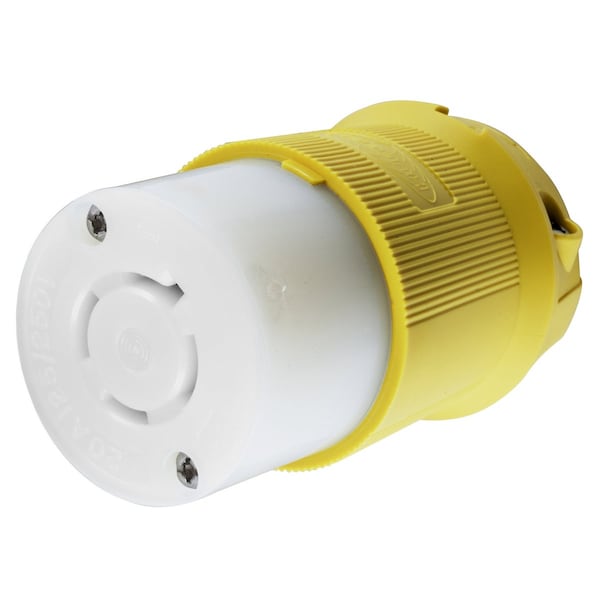

Dispositivos de bloqueo, Twist-Lock®, Grado Marino, Cuerpo del Conector Hembra, 125/250V AC, 3 Polos y 4 Hilos de Tierra, L14-20R, Terminal de Tornillo, Amarillo.
| Item - Plugs and Receptacles | Connector Body |
|---|---|
| Amps | 20 |
| Voltage | 125/250V AC |
| Number of Poles | 3-Pole |
| NEMA Configuration | L14-20R |
| Wiring Style | Chem, Marine |
| Color - Plugs and Receptacles | Yellow |
| IP Rating | IP20 |
| Standards | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.; Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Special Features | Terminals identified in accordance with UL 498 |
| Material | .031" (.8) Brass |
| Body Material | Natural White Nylon |
| Application | Heavy Duty Industrial |
| Weight | 0.4 |
| Type | Connector Body |
| Cord Dia. Range | .350"-1.150" |
| Flame Resistant | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Dielectric Strength | Withstands 2,000V minimum |
| Width | 2.33 in |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Item Type | 20A Corrosion Resistant Insulgrip® Connector |
| Amperage Rating | 20 A |
| Horsepower - Maximum | 2 |
| Industry Standard(s) | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
| Length | 2.33 in |
| Current / Amperage Rating | 20 A |
| Cord Range | 0.350"-1.150" |
| Nema Rating | L14-20R |
| Insulation | Insulated Body |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Current Rating | 20 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Height | 3.86 in |
| Wire Size | #16 AWG to #8 AWG |
| Dimensions | 2.33 in x 2.33 in x 3.86 in |
| Number Of Wires | 4-Wire |
| Connectivity | Pressure Terminal Screws |
| Voltage Rating Description | 125/250 VAC |
| Display Size | Standard |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Material - Mounting Hardware | Cord Mounted |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
