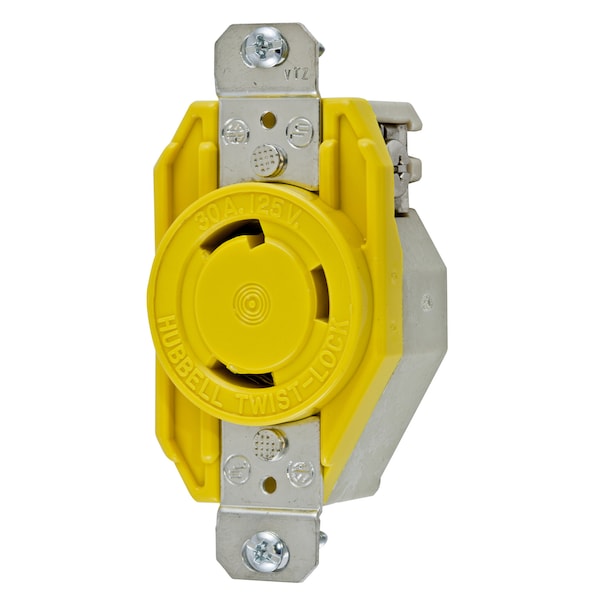

Locking Devices, Twist-Lock®, Marine Grade, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Yellow
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L5-30R |
| Voltage | 125V AC |
| Amps | 30 |
| Color | Yellow |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Wiring Style | Chem, Marine |
| IP Rating | IP20 Suitability |
| Material | Steel-zinc-plated |
| HP | 2 |
| Special Features | Molded In or Stamped On |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Application | Wiring Devices |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Weight (Lbs.) | 0.3 |
| Wire Size | #10 AWG |
| Spring Material | .040" Brass |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Base Material | Nylon Polyester |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Lock Type | Twist-lock |
| Dielectric Strength | Withstands 2,000V minimum |
| Environmental Conditions | Corrosion Resistant |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 30 A |
| Amperage Rating | 30 A |
| Current Rating | 30 A |
| Item Type | Single Flush Receptacles |
| Voltage Rating Description | 125 VAC |
| Horsepower - Maximum | 2 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Number Of Wires | 3-Wire |
| Dimensions | 3.28 in x 1.7 in x 1.31 in |
| Nema Rating | L5-30R |
| Material - Mounting Hardware | Screw Mounting |
| Type | Single Flush Receptacle |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Length | 3.28 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Height | 1.31 in |
| Connectivity | Back and Side Wired Screw Terminals |
| Industry Standard(s) | Listed to UL 498 Fed.Spec. W-C-596 Certified to CSA C22.2 No.42 |
| Width | 1.7 in |
| Package Quantity | 1 |
