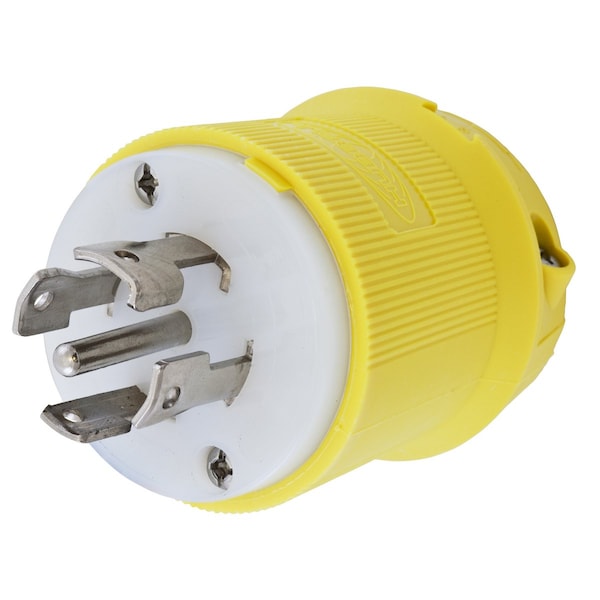

Locking Devices, Twist-Lock®, Marine Grade, Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 5-Wire Grounding, L21-30P, Screw Terminal, Yellow
| Item - Plugs and Receptacles | Chem/Marine Plug |
|---|---|
| Length | 2.33 in |
| Amps - Plugs and Receptacles | 30A |
| Voltage - Plugs and Receptacles | 3 Phase Y 120/208V AC |
| Number of Poles | 4-Pole, 5-Wire Grounding |
| Phase | 3 Phase WYE |
| Color | Yellow |
| IP Rating | IP20 |
| Cord Size | .35"-1.15" |
| Application | Heavy Duty Industrial |
| Material | Nylon |
| Standards | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green),FED SPEC UL/CSA |
| NEMA Configuration | L21-30R |
| HP | 3 |
| Wire Size | #16 AWG to #8 AWG |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Temp. Rise | Max 30C Temp. Rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Weight (Lbs.) | 0.25 |
| Blade Material | Brass |
| Flammability | CSA, HB or better per UL 94 22.2 No. 0.6 |
| Current Rating | 30 A |
| Number Of Wires | 5-Wire Grounding |
| Connectivity | Pressure Terminal Screws |
| Cord Type | All Listed Portables |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Width | 2.33 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Cord Range | 0.350"-1.150" |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Height | 2-3/4 in |
| Item Type | 30A Corrosion Resistant Insulgrip® Plug |
| Listings | UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Dimensions | 2.33 in x 2.33 in x 2-3/4 in |
| Display Size | Standard Sized |
| Voltage Rating Description | 120/208 VAC |
| Material - Mounting Hardware | Cord Mounted |
| Nema Rating | L21-30P |
| Environmental Conditions | Corrosion Resistant |
| Horsepower - Maximum | 3 |
| Amperage Rating | 30 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current / Amperage Rating | 30 A |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Package Quantity | 1 |
