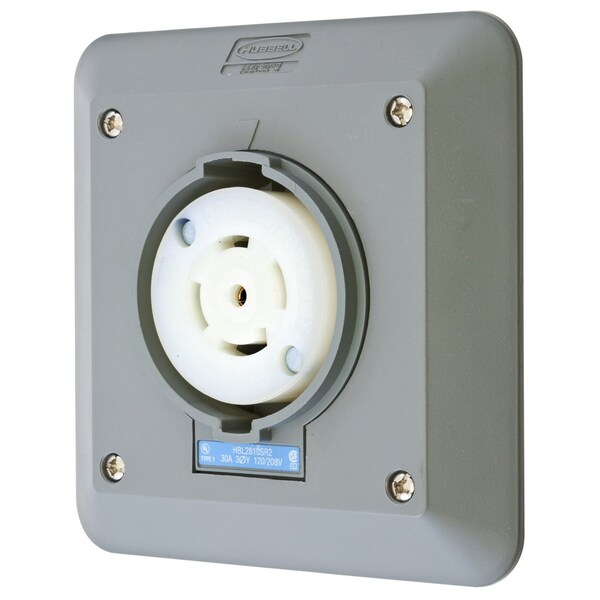

Dispositivos de bloqueo, Twist-Lock®, Protector de seguridad, Receptáculo empotrado semivuelta de 2 elementos, 30A 3 fases Wye 120/208V CA, Toal 4 pines 5 cables de tierra, L21-30R.
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L21-30R |
| Voltage | 120/208V AC |
| Amps | 30 |
| Color | Gray |
| Number of Poles | 4-Pole |
| Phase | 3 Phase WYE |
| Wiring Style | Shrouded |
| Flange Material | Gray Valox 357U |
| Material | zinc plated |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| HP | 3 |
| IP Rating | IP20 Suitability |
| Special Features | Molded In or Stamped On |
| Application | Heavy Duty Industrial Shrouded |
| Lock Type | Twist-lock |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Spring Material | .031" Brass |
| Operating Temp. | Maximum Continuous 75A Deg C; Minimum -40A Deg C (w/o impact) |
| Flammability | UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors. |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Weight (Lbs.) | 0.65 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Type | Receptacle |
| Number Of Wires | 5-Wire |
| Connectivity | Back Wired Screw Terminals |
| Width | 5.12 in |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard Sized Product |
| Current Rating | 30 A |
| Voltage Rating Description | 3 Phase WYE 120/208 VAC |
| Current / Amperage Rating | 30 A |
| Length | 5.12 in |
| Number of Gang(s) | 2-Gang |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 5.12 in x 5.12 in x 2.22 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | L21-30R |
| Amperage Rating | 30 A |
| Horsepower - Maximum | 3 |
| Item Type | ® Receptacle |
| Height | 2.22 in |
| Package Quantity | 1 |
