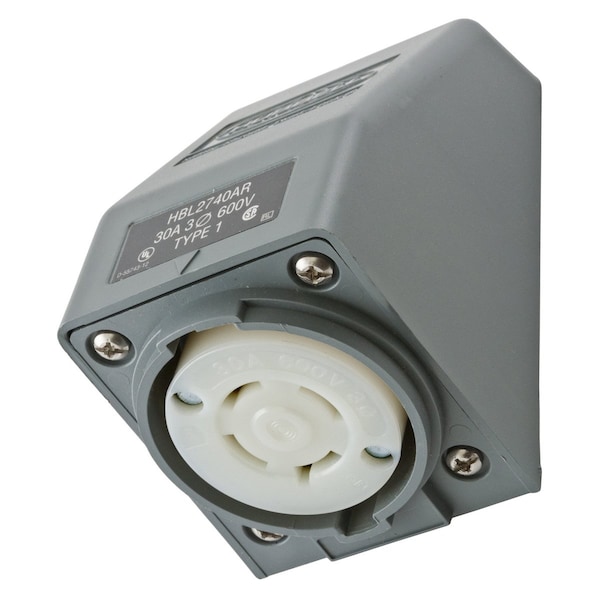

Dispositivos de bloqueo, Twist-Lock®, Protección de seguridad, Receptáculo angulado, 30A 3-Phase Delta 600V AC, 3 polos 4 cables a tierra, L17-30R, Terminal de tornillo, Gris.
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L17-30R |
| Voltage | 600V AC |
| Amps | 30 |
| Color | Gray |
| Number of Poles | 3-Pole |
| Phase | Three Phase |
| Wiring Style | Shrouded |
| Special Features | Molded In or Stamped On |
| Flange Material | Gray Valox 357U |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Material | zinc plated Steel |
| IP Rating | IP20 Suitability |
| Application | Heavy Duty Industrial Shrouded |
| Lock Type | Twist-lock |
| Terminal Designations | Terminals identified in accordance with UL 498 |
| Flammability | HB or better per UL94 or CSA 22.2 No. 0.6 |
| Wire Size | #16 AWG - #8 AWG solid or stranded copper wire only. |
| Weight (Lbs.) | 0.7 |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Spring Material | .031" Brass |
| Dimensions | 4.77 in x 2.85 in x 3.14 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 30 A |
| Nema Rating | L17-30R |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Voltage Rating Description | 600 V |
| Width | 2.85 in |
| Height | 3.14 in |
| Operating Temperature | -40°C to 85°C |
| Number of Gang(s) | 1-Gang |
| Connectivity | Back Wired Screw Terminals |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Screw Mounting |
| Dielectric Strength | Withstands 2,000V minimum |
| Amperage Rating | 30 A |
| Type | Receptacle |
| Current Rating | 30 A |
| Number Of Wires | 4-Wire |
| Item Type | ® Receptacle |
| Length | 4.77 in |
| Package Quantity | 1 |
