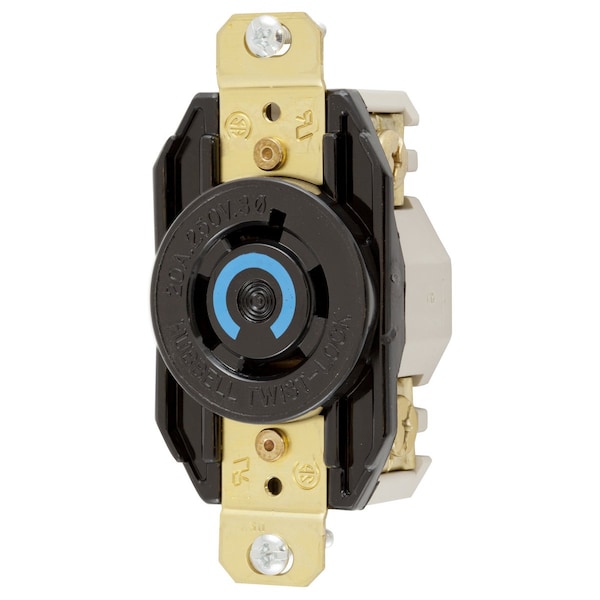

Locking Devices, Twist-Lock®, Single Flush Receptacle, 20A, 250V AC, 3-Pole, 4-Wire Grounding, Black
| Item | Single Receptacle |
|---|---|
| NEMA Configuration | L15-20R |
| Voltage | 250V AC |
| Amps | 20 |
| Color | Black |
| Number of Poles | 3-Pole |
| Phase | Three Phase |
| Height | 1.23 in |
| Wiring Style | Standard with Ring Terminal Wiring |
| Width | 1.37 in |
| Application | Heavy Duty Industrial |
| Length | 2.37 in |
| HP | 3 |
| Material | zinc plated Steel |
| Standards | Certified for current interrupting at full rated current; FED SPEC UL/CSA |
| Special Features | Molded In or Stamped On |
| Base Material | Nylon Polyester |
| Operating Temp. | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
| Terminal Designations | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Temp. Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
| Wire Size | #12AWG |
| Lock Type | Twist-lock |
| Weight (Lbs.) | 0.3 |
| Spring Material | .040" Brass |
| Flammability | HB or better per UL94 or CSA 22.2 No. 0.6 |
| Current Rating | 20 A |
| Horsepower - Maximum | 3 |
| Voltage Rating | 250 VAC |
| Connectivity | Ring Terminal |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | L15-20R |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 2.37 in x 1.37 in x 1.23 in |
| Item Type | 20A Single Flush Receptacle |
| Number Of Wires | 4-Wire Grounding |
| Amperage Rating | 20 A |
| Display Size | Standard Sized Product |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 20 A |
| Package Quantity | 1 |
