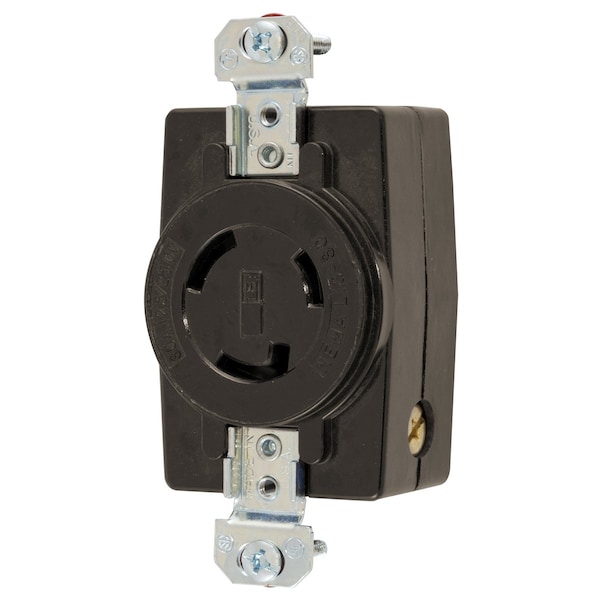

Dispositivos de bloqueo, receptáculo único de torsión, 30A, 125/250V AC, 3 polos, 3 alambres sin conexión a tierra, NEMA L10-30R, cara de nylon, cableado de conexión trasera y lateral.
| Voltage | 125/250 VAC |
|---|---|
| Amps | 30 |
| Color | Black |
| Phase | Single Phase |
| Mounting Type | Screw Mounting |
| Material | Nylon |
| Application | Heavy Duty Industrial |
| Operating Temp. | Maximum continuous 75A Deg C and minimum -40A Deg C without Impact |
| Wire Size | #16 AWG to #8 AWG |
| Nema Rating | L10-30R |
| Number Of Poles | 3-Pole |
| Number Of Wires | 3-Wire |
| Industry Standard(s) | Certified to CSA C22.2 No.42 Fed.Spec. W-C-596 Listed to UL 498 |
| Voltage Rating | 125/250 VAC |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| Connectivity | Back and Side Wired Screw Terminals |
| Amperage Rating | 30 A |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | 30A Single Flush Receptacle |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 30 A |
| Listings | UL 498 Fed.Spec. W-C-596 CSA C22.2 No.42 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current Rating | 30 A |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) |
| Package Quantity | 1 |
